Engine

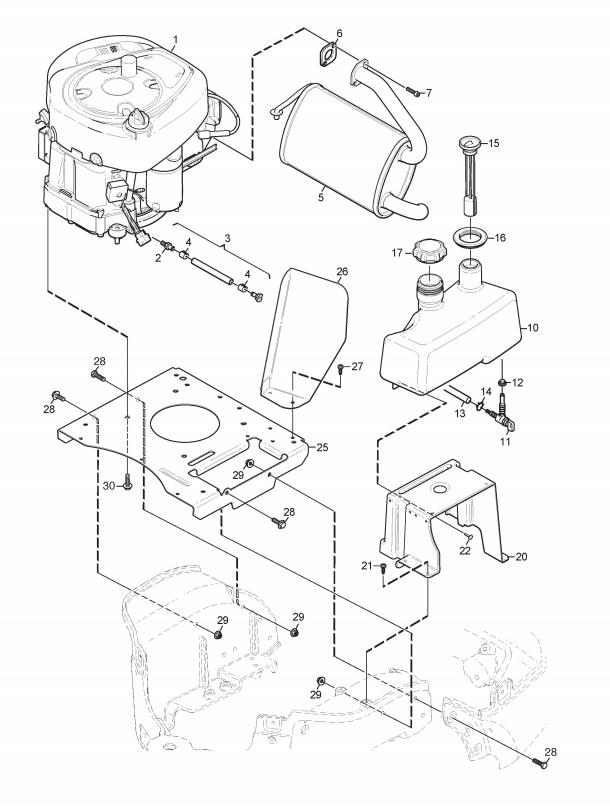

Engine assembly details for Stiga Villa 520 HST 2014 (13-5721-71) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-5825-01NIPPLE£56.07 Add to
003387869524/0OIL DRAIN PIPE£15.46 Add to
0049578-0023-04HOSE CLAMP£5.07 Add to
0061134-0433-00MUFFLER GASKET£5.59 Add to
0071134-4930-01SCREW£2.21 Add to
010337735116/0FUEL TANK£61.26 Add to
0111134-3224-01FUEL SHUT-OFF VALVE£23.76 Add to
0121134-3225-01GROMMET£7.21 Add to
0139505-0001-01FUEL HOSE [1M]£8.94 Add to
0149578-0023-02HOSE CLAMP£5.46 Add to
0151137-0838-01FUEL LEVEL INDICATOR£54.78 Add to
0161135-2528-01RUBBER SLEEVE£8.79 Add to
017125795001/1FUEL TANK CAP£7.92 Add to
0201137-0914-01TANK BRACKET£29.62 Add to
0219893-0616-16SCREW M6 x 16£2.35 Add to
0229838-9516-12SCREW K50 x 16£2.35 Add to
0251137-0777-01ENGINE PLATE£80.73 Add to
0261137-1026-01TANK GUARD£30.57 Add to
0279893-0616-16SCREW M6 x 16£2.35 Add to
028112793301/0HEX-HEAD SCREW M8 x 25£1.96 Add to
029112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0309955-3725-16SCREW 3/8" x 25£2.73 Add to
