Electric

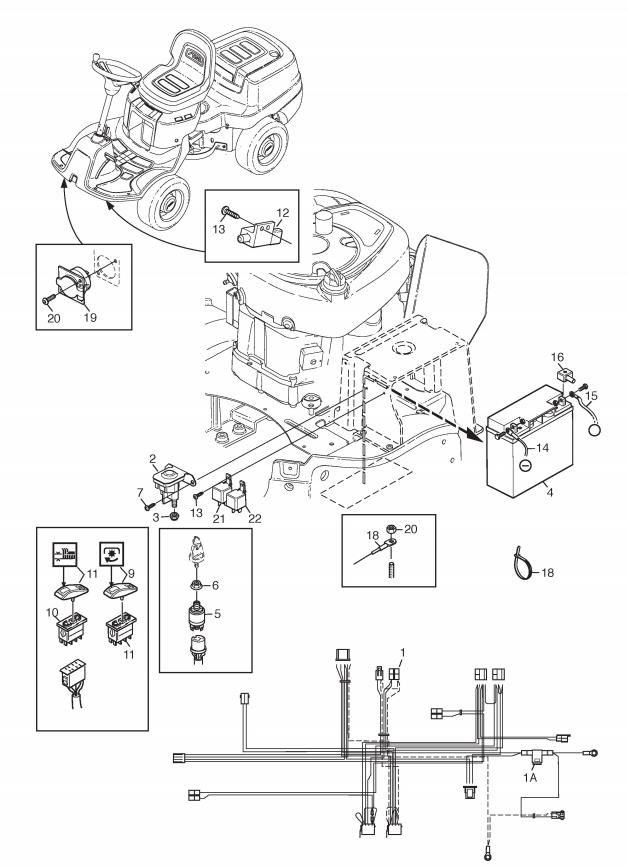

Electric assembly details for Stiga Villa 520 HST 2014 (13-5721-71) 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-3496-06	FUSE 20A	£2.06	Add to
001A	1137-0868-01	BRACKET	£122.79	Add to
002	118736112/0	SOLENOID	£39.80	Add to
003	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
004	1134-4093-01	IGNITION SWITCH	£67.05	Add to
004A	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
005	1134-4749-01	NUT	£5.05	Add to
007	9838-9516-12	SCREW K50 x 16	£2.47	Add to
008	9400-0282-01	SWITCH C/W DIODE	£76.59	Add to
009	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
010	9400-0282-01	SWITCH C/W DIODE	£76.59	Add to
011	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
012	1134-3399-01	SWITCH	£45.26	Add to
013	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
014	1134-2167-02	CABLE (-)	£20.58	Add to
015	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
016	1134-2310-01	GUARD CAP (+)	£9.28	Add to
017	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
018	9579-0003-00	CABLE HOLDER	£2.06	Add to
019	1134-7535-01	FEMALE TERMINAL	£7.73	Add to
020	9840-7716-16	SCREW	£2.32	Add to
021	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
022	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
