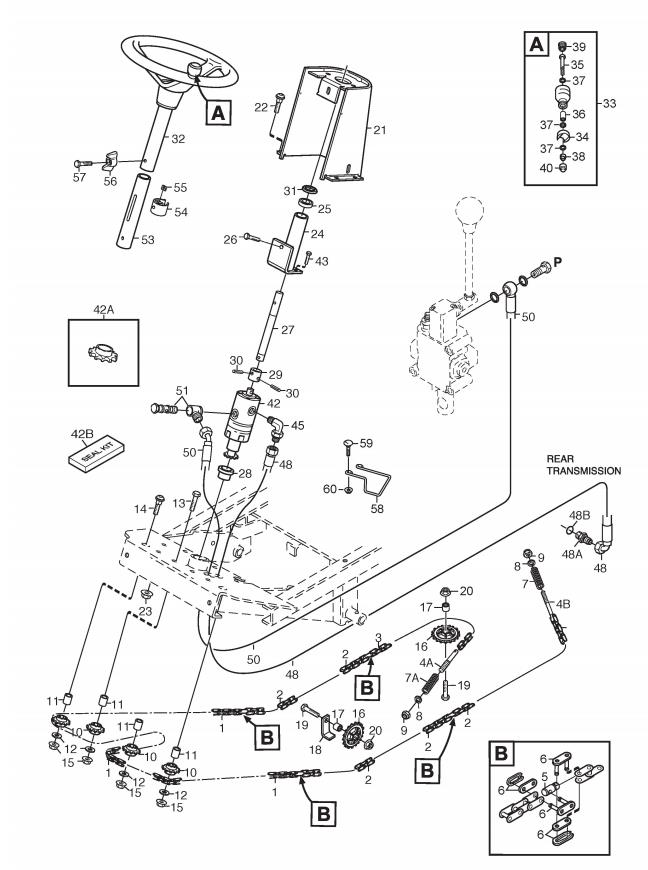

Steering assembly details for Stiga PARK 520 DP 2014 (13-6318-31) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001187000351/0STEERING CHAIN 83M ELITE PC-PCH W/SERVO£35.71 Add to
002187000352/0STEERING CHAIN 41M ELITE FM W/SERVO£28.90 Add to
0031134-6374-04CHAIN (45 LINKS)£16.10 Add to
0041134-3550-01END NIPPLE [L=110]£18.53 Add to
004A1134-3550-02END NIPPLE [L=90]£18.27 Add to
0051134-3565-01CONNECTION NIPPLE£16.17 Add to
006187060100/0STEERING CHAIN LINK£6.01 Add to
0071134-3817-01COMPRESSION SPRING£12.96 Add to
007A1134-3817-02COMPRESSION SPRING£12.68 Add to
0089699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0101134-2816-01SPROCKET£10.77 Add to
0111134-0041-02BUSH£10.09 Add to
012112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0139997-1050-16SCREW M6S M10 x 50£2.87 Add to
0149897-1040-12SCREW M10 x 40£3.49 Add to
0159739-1031-22NUT M10£2.32 Add to
0161134-3547-01SPROCKET£12.96 Add to
0171134-0041-01BUSH£9.41 Add to
0181134-3022-01BRACKET£62.97 Add to
0199997-1030-16SCREW M6S M10 x 30£3.00 Add to
0209739-1031-22NUT M10£2.32 Add to
0211137-0066-01STEERING COLUMN COVER£139.00 Add to
0229897-0820-16SCREW M8 x 20£2.32 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0241137-0044-01STEERING COLUMN ASSEMBLY£77.55 Add to
0259549-0017-00BALL BEARING£12.14 Add to
0269945-0816-16SCREW M8 X 16£2.54 Add to
0271137-0045-01STEERING ROD£54.04 Add to
0281134-4114-01BUSH£19.93 Add to
0291134-4118-01COUPLING£22.49 Add to
0309595-0256-01LOCATING PIN£2.47 Add to
0319695-0011-00WASHER 16 x 22 x 1£2.47 Add to
0321134-5173-02STEERING WHEEL C/W KNOB£191.06 Add to
0331134-3769-01STEERING WHEEL BUTTON KIT£37.08 Add to
0341134-3752-01KNOB HOLDER£7.13 Add to
0359997-0870-16SCREW M6S M8 x 70£2.47 Add to
0361134-1565-06SPACER£11.32 Add to
0379699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
039118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
040118203854/0NUT CAP M8 [BLACK]£2.06 Add to
042187305501/1STEERING BOOSTER£681.63 Add to
042A187305501/1STEERING BOOSTER£681.63 Add to
042B1139-2106-01PINION (STEERING BOOSTER)£148.89 Add to
0439939-0612-16SCREW M6 x 12£2.32 Add to
0451134-7073-01HYDRAULIC COUPLING 90°£34.35 Add to
048387520119/0LOWER STEERING COLUMN£74.87 Add to
048A9404-0028-01O RING 11.89 x 1.98£4.78 Add to
0501137-0216-01HYDRAULIC HOSE L=2050mm£105.21 Add to
0511134-6323-01BANJO BOLT 3/8"£10.50 Add to
0531137-0070-01INNER STEERING TUBE£61.60 Add to
0541134-5177-01SLIDE COLLAR£13.64 Add to
0559710-0631-12SQUARE NUT£3.55 Add to
0561134-4481-02WING NUT£6.14 Add to
057112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
0599897-0616-16SCREW£2.47 Add to
060112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
070387106407/0STEERING CHAIN ASSEMBLY£302.40 Add to
