Foot Controls

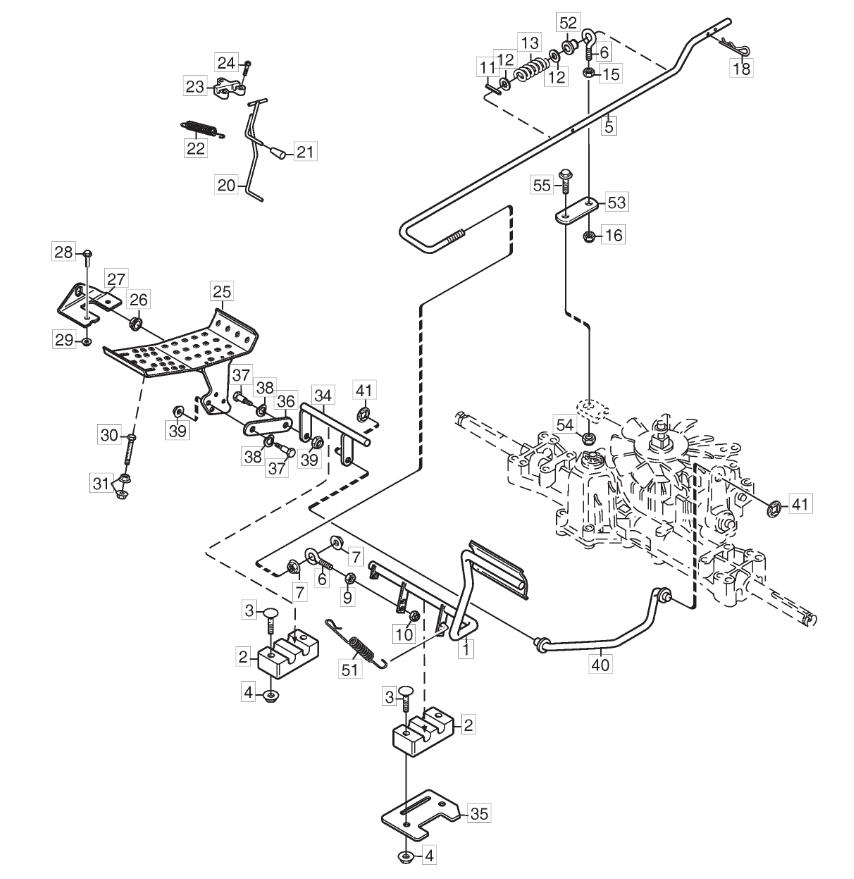

Foot Controls assembly details for Stiga VILLA 14 HST (13-2718-14) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4802-01PEDAL£52.92 Add to
0021134-4624-01BEARING£9.70 Add to
0039897-0640-12CARRIAGE BOLT M6 x 40£3.15 Add to
004112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0051134-4949-01CLUTCH ROD£39.00 Add to
0061134-2138-01EYE BOLT£9.20 Add to
0079739-1031-22NUT M10£3.15 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
010112154220/0SELF-LOCK NUT M8£2.90 Add to
0119595-0208-00LOCATING PIN£3.53 Add to
012112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0131134-4617-01SPRING£5.17 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
016112154220/0SELF-LOCK NUT M8£2.90 Add to
0189598-0002-02SPRING PIN 2.5mm L=47mm£2.90 Add to
0201134-5353-01BRAKE ROD£28.38 Add to
0211134-2786-01PLASTIC KNOB£6.93 Add to
0221131-1497-01BRAKE SPRING£10.71 Add to
0231134-4002-01BRAKE ROD ATTACHMENT£12.35 Add to
0249838-9516-12SCREW K50 x 16£3.28 Add to
0251134-6353-01IMPLEMENT PEDAL£41.33 Add to
0261134-6313-01BEARING£7.81 Add to
0271134-2700-01BRACKET£17.14 Add to
0289959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
029112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0309997-0870-16SCREW M6S M8 x 70£3.28 Add to
031112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0341134-4440-01SHAFT£34.02 Add to
0351134-4793-01BRACKET£16.88 Add to
0361134-4441-01LINK£13.23 Add to
0371134-0240-00SCREW£9.45 Add to
038122675110/0WASHER D=13.5 x 20.5 x 0.5£2.98 Add to
039112154220/0SELF-LOCK NUT M8£2.90 Add to
0401134-5288-01CONTROL ROD£36.54 Add to
041112604899/0STARLOCK WASHER RPCO 308 D=8£2.90 Add to
0514231-0013-00SPRING£9.20 Add to
0521134-4779-01PLASTIC BUSH£3.02 Add to
0531134-4972-01BRACKET£12.60 Add to
054112154220/0SELF-LOCK NUT M8£2.90 Add to
055112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.90 Add to
