Frame

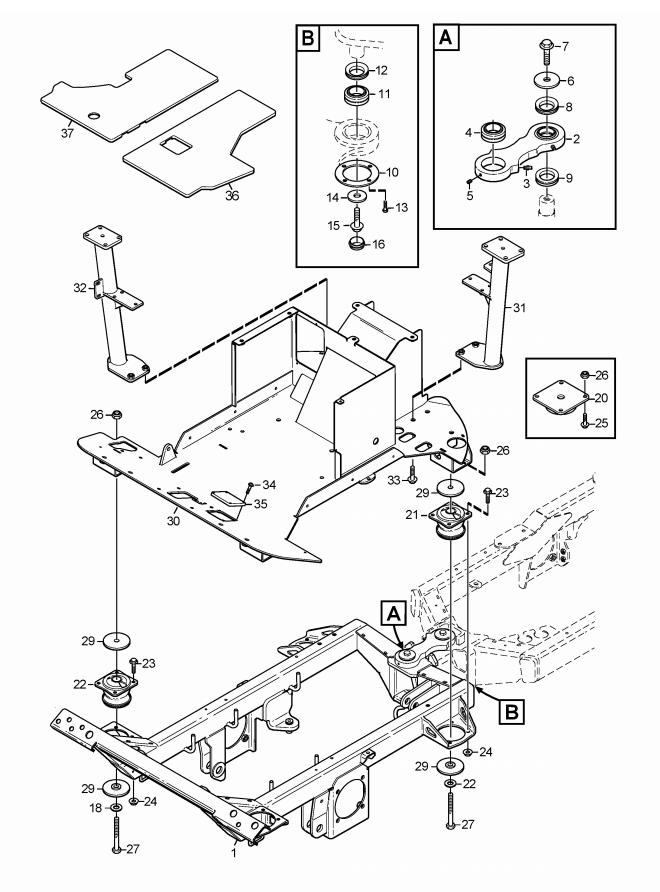

Frame assembly details for Stiga TITAN 740 DCR 2013 (13-7462-11) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0459-01	FRONT FRAME	£2,735.60	Add to
002	1135-3018-01	LINK ASSEMBLY	£375.02	Add to
003	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
004	9547-0006-01	SPHERICAL BEARING	£34.35	Add to
005	9907-0610-16	SCREW	£3.55	Add to
006	1135-4008-01	WASHER V-RING	£11.18	Add to
007	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
008	9404-0204-01	SEALING RING	£12.55	Add to
009	9404-0203-01	SEALING RING	£5.19	Add to
010	1135-4009-01	LOCK WASHER	£71.14	Add to
011	9547-0007-01	SPHERICAL BEARING	£61.60	Add to
012	9404-0202-01	SEALING RING	£4.52	Add to
013	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
014	1135-4010-01	WASHER	£7.10	Add to
015	9991-1024-19	SCREW M10 x 24	£2.59	Add to
016	1135-4007-01	COVER ARTICULATION JOINT	£13.77	Add to
021	084-301-01	REAR CABIN DAMPER [WHITE]	£206.35	Add to
022	084-302-01	FRONT CABIN DAMPER [BLUE]	£202.92	Add to
023	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
024	9739-1031-22	NUT M10	£2.32	Add to
026	9747-1631-02	NUT	£2.06	Add to
027	082-202-01	SCREW M6S M16 x 100 FZB 8.8	£4.52	Add to
028	9699-0123-02	WASHER 17 x 40 x 6	£4.75	Add to
030	1137-0548-01	FLOOR PLATE	£1,737.71	Add to
031	1137-0543-01	ROPS ATTACHMENT ARM L/H	£379.49	Add to
032	1137-0544-01	ROPS ATTACHMENT ARM R/H	£422.72	Add to
033	9959-1225-16	SCREW M6SF 8.8	£2.06	Add to
035	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
036	1137-0700-01	FLOOR MAT L/H	£134.27	Add to
037	1137-0701-01	FLOOR MAT R/H	£134.27	Add to
