Cabin (1)

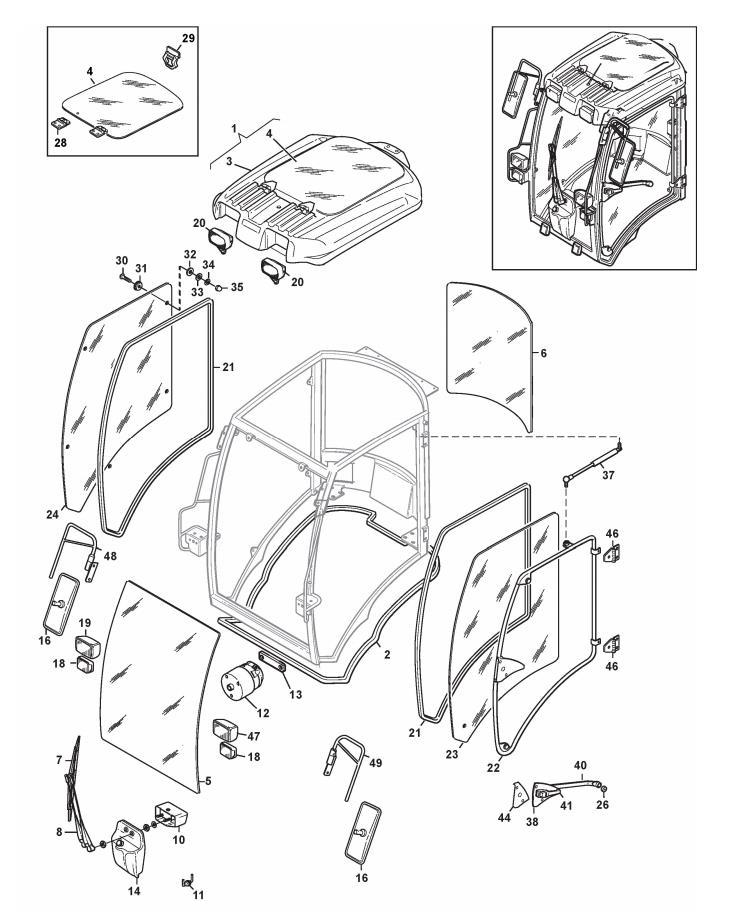

Cabin (1) assembly details for Stiga TITAN 740 DCR 2013 (13-7462-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1319-1162-01	ROOF ASSY	£2,731.38	Add to
003	1319-1172-01	ROOF	£1,546.07	Add to
004	1319-1174-01	UPPER GLASS	£674.81	Add to
005	1319-1134-01	WIND SCREEN	£1,008.67	Add to
006	1319-1137-01	REAR GLASS	£1,853.54	Add to
007	1319-1152-01	WIND SCREEN WIPER BLADE	£135.19	Add to
008	1319-1151-01	WIND SCREEN WIPER ARM	£272.82	Add to
011	1319-1128-01	VALVE	£12.30	Add to
012	1319-1150-01	WIND SCREEN WIPER MOTOR	£545.36	Add to
013	1319-1149-01	BRACKET-WIND SCREEN WIPER MOTOR	£620.31	Add to
014	1319-1190-01	WATER TANK	£225.12	Add to
016	1319-1125-01	MIRROR	£129.74	Add to
018	1319-1100-01	DIRECTION LIGHT	£150.18	Add to
019	9400-0355-01	R/H HEADLAMP	£122.16	Add to
020	1319-1121-01	WORK LAMP	£156.99	Add to
021	1319-1142-01	RUBBER SEAL (METRE)	£37.08	Add to
022	1319-1180-01	DOOR FRAME	£668.00	Add to
023	1319-1135-01	DOOR GLASS L/H	£574.97	Add to
024	1319-1136-01	SIDE GLASS R/H	£804.27	Add to
026	1319-1127-01	SPACER	£7.63	Add to
029	1319-1175-01	HANDLE	£129.74	Add to
031	1319-1158-01	PLATE	£9.07	Add to
032	1319-1160-01	RUBBER GASKET	£2.74	Add to
033	1319-1178-01	GASKET	£5.19	Add to
033	1319-1178-01	GASKET	£5.19	Add to
034	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
035	1319-1177-01	NUT COVER	£2.06	Add to
037	1319-1132-01	GAS SPRING	£211.50	Add to
038	1319-1133-01	HINGE	£61.60	Add to
040	1319-1148-01	DOOR LOCK L/H	£415.91	Add to
041	1319-1143-01	DOOR HANDLE W KEYS	£231.93	Add to
042	1319-1161-01	DOOR PLATE GASKET	£14.05	Add to
044	1319-1147-01	BOLT STRIKER	£45.26	Add to
046	1319-1133-01	HINGE	£61.60	Add to
047	9400-0355-02	L/H HEADLAMP	£122.16	Add to
048	1319-1123-01	MIRROR ARM R/H	£170.61	Add to
049	1319-1124-01	MIRROR ARM L/H	£170.61	Add to
