Cabin (1)

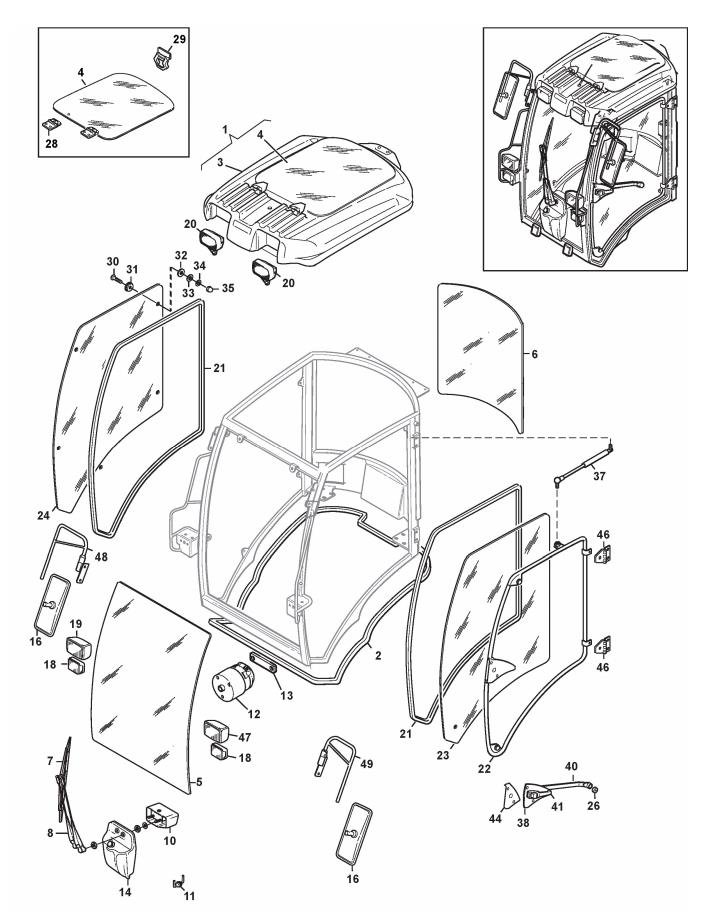

Cabin (1) assembly details for Stiga TITAN 740 DC 2013 (13-7461-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011319-1162-01ROOF ASSY£2,526.54 Add to
0031319-1172-01ROOF£1,430.56 Add to
0041319-1174-01UPPER GLASS£624.96 Add to
0051319-1134-01WIND SCREEN£933.66 Add to
0061319-1137-01REAR GLASS£1,714.86 Add to
0071319-1152-01WIND SCREEN WIPER BLADE£126.00 Add to
0081319-1151-01WIND SCREEN WIPER ARM£253.26 Add to
0111319-1128-01VALVE£12.37 Add to
0121319-1150-01WIND SCREEN WIPER MOTOR£505.26 Add to
0131319-1149-01BRACKET-WIND SCREEN WIPER MOTOR£574.56 Add to
0141319-1190-01WATER TANK£209.16 Add to
0161319-1125-01MIRROR£120.96 Add to
0181319-1100-01DIRECTION LIGHT£139.86 Add to
0199400-0355-01R/H HEADLAMP£113.95 Add to
0201319-1121-01WORK LAMP£146.16 Add to
0211319-1142-01RUBBER SEAL (METRE)£35.28 Add to
0221319-1180-01DOOR FRAME£618.66 Add to
0231319-1135-01DOOR GLASS L/H£532.64 Add to
0241319-1136-01SIDE GLASS R/H£744.66 Add to
0261319-1127-01SPACER£8.06 Add to
0291319-1175-01HANDLE£120.96 Add to
0311319-1158-01PLATE£9.39 Add to
0321319-1160-01RUBBER GASKET£3.53 Add to
0331319-1178-01GASKET£5.80 Add to
034112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0351319-1177-01NUT COVER£2.90 Add to
0371319-1132-01GAS SPRING£196.56 Add to
0381319-1133-01HINGE£57.96 Add to
0401319-1148-01DOOR LOCK L/H£385.56 Add to
0411319-1143-01DOOR HANDLE W KEYS£215.46 Add to
0421319-1161-01DOOR PLATE GASKET£13.99 Add to
0441319-1147-01BOLT STRIKER£42.84 Add to
0461319-1133-01HINGE£57.96 Add to
0479400-0355-02L/H HEADLAMP£113.95 Add to
0481319-1123-01MIRROR ARM R/H£158.76 Add to
0491319-1124-01MIRROR ARM L/H£158.76 Add to
