Electrical System (2)

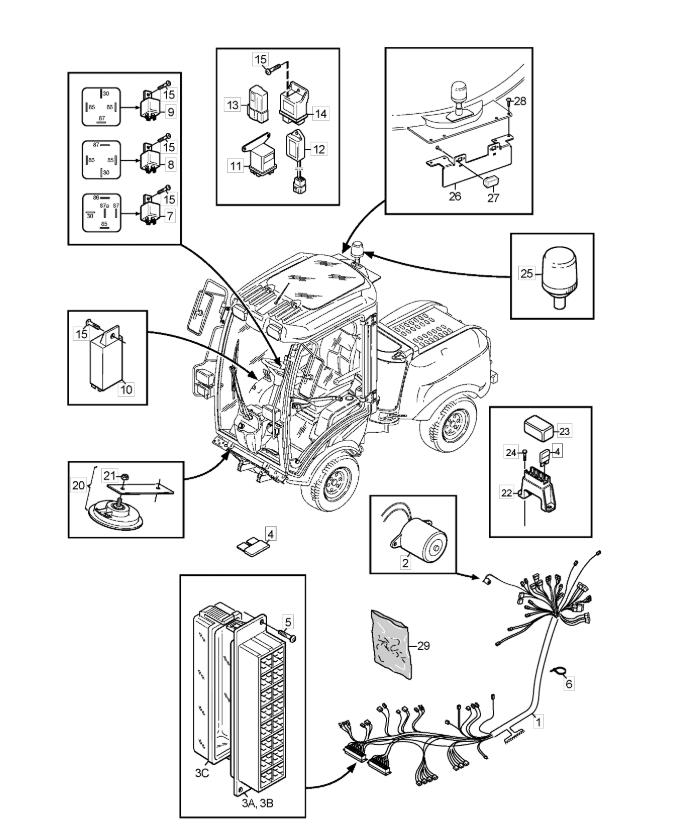

Electrical System (2) assembly details for Stiga TITAN 740 D 2013 (13-7460-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0660-01WIRING HARNESS£1,878.80 Add to
0021134-7530-01BUZZER£40.32 Add to
0041134-3496-01FUSE 10A£2.90 Add to
004A1134-3496-04FUSE 7.5A£2.90 Add to
004B1134-3496-07FUSE 30A£5.67 Add to
004C1134-3496-08FUSE 40A£5.42 Add to
0069579-0003-00CABLE HOLDER£2.90 Add to
0071134-2871-03STARTER RELAY [5 SPADE]£42.84 Add to
0081135-2748-01RELAY-FUEL VALVE£120.96 Add to
0091134-2871-01DECK RELAY [4 SPADE]£42.84 Add to
0109400-0337-01FLASHING RELAY£133.56 Add to
0111134-2748-01LOCKING PLATE£16.02 Add to
0121135-2749-01TIMER£190.26 Add to
0131135-2747-01DIODE£19.07 Add to
0141135-2753-01CONTROL UNIT£398.16 Add to
0159893-0616-16SCREW M6 x 16£3.28 Add to
020082-564-01HORN£54.85 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0221134-3491-01FUSE HOLDER£13.68 Add to
0231134-3631-01COVER-FUSE HOLDER£12.98 Add to
025082-688-01WARNING LIGHT£205.20 Add to
9999400-0342-01FUSE BOX£115.92 Add to
999A9400-0350-01COVER-FUSE BOX£16.00 Add to
