Rops

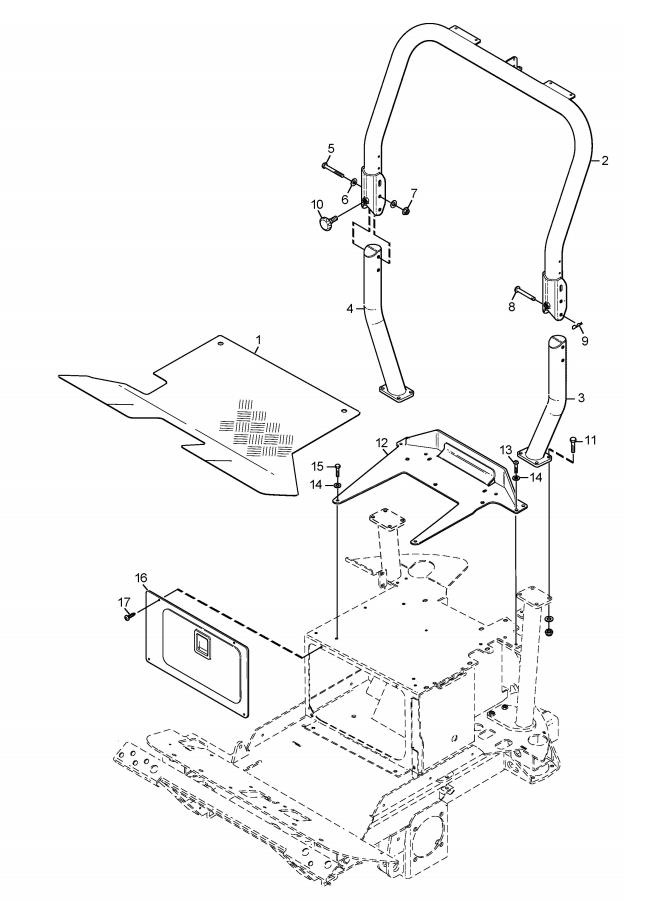

Rops assembly details for Stiga TITAN 540 D 2013 (13-7454-11) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-2527-02	FLOOR MAT	£100.44	Add to
002	1137-0583-01	UPPER TUBE-ROPS	£920.09	Add to
003	1137-0586-01	BRACKET L/H-ROPS	£381.83	Add to
005	9997-1290-12	SCREW M6S	£3.64	Add to
007	9747-1231-02	NUT	£2.06	Add to
008	1134-7565-01	CLEVIS PIN	£62.97	Add to
009	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
010	1134-7561-01	LOCKING KNOB	£12.14	Add to
011	9939-1030-16	SCREW	£2.06	Add to
012	1137-0696-01	REINFORCEMENT PLATE	£88.85	Add to
013	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
014	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
015	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
