Lifting Device

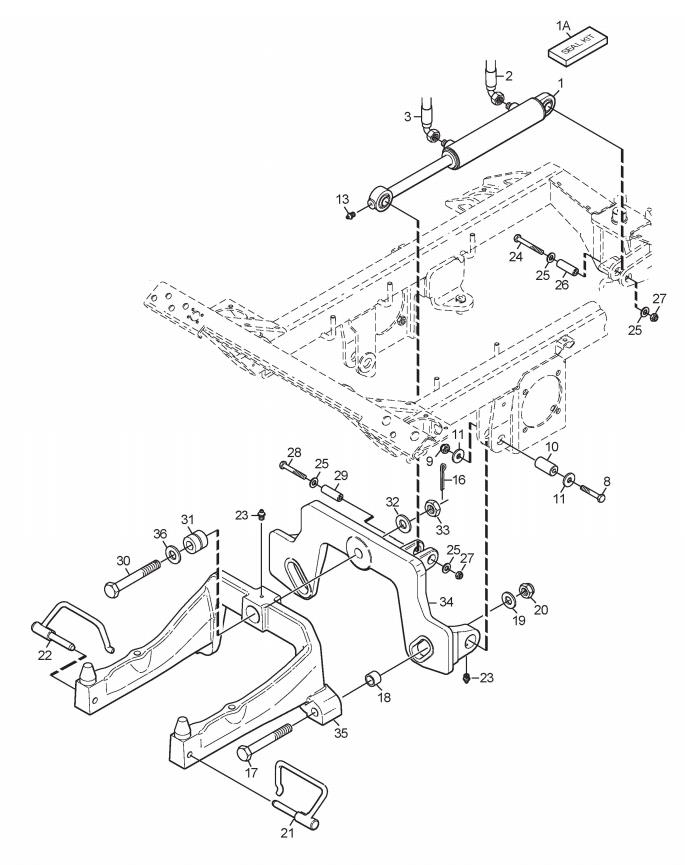

Lifting Device assembly details for Stiga TITAN 540 D 2013 (13-7454-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6801-01LIFT CYLINDER£590.77 Add to
0021137-0186-09HYDRAULIC HOSE 45° ¼"£45.24 Add to
0031137-0185-21HYDRAULIC HOSE 90° ¼"£49.09 Add to
0089997-1070-12SCREW M6S (M10 X 70)£3.63 Add to
009112156602/0LOW SELF-LOCKING NUT M10£1.70 Add to
0101134-6991-01PIN-ACCESSORY LIFT£12.60 Add to
0111134-5406-01WASHER M10 10.5 x 35 x 5£4.03 Add to
0169599-0101-02COTTER PIN 5 x 45£1.70 Add to
017082-202-01SCREW M6S M16 x 100 FZB 8.8£4.30 Add to
0209747-1631-02NUT£1.96 Add to
0211134-7842-01LOCK PIN L/H£65.16 Add to
0221134-7842-02LOCK PIN R/H£65.16 Add to
023112379511/0STRAIGHT GREASE NIPPLE M6 x 1£1.96 Add to
024112793900/0HEX-HEAD SCREW M8 x 60£1.96 Add to
025112523060/0WASHER M8 8.4 X 24 X 2£1.96 Add to
0261134-7557-01SHAFT£12.54 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0289997-0870-16SCREW M6S M8 x 70£2.35 Add to
0291134-7557-02SHAFT£15.54 Add to
0301135-3306-01SCREW£22.42 Add to
0311135-3055-01BUSH£57.13 Add to
0329690-0002-02WASHER£10.65 Add to
0339747-2031-02NUT M20£3.00 Add to
0341135-4092-01ATTACHMENT REAR PLATE£390.21 Add to
0351135-3003-01IMPLEMENT ATTACHMENT£862.38 Add to
999080-222-01GREASE JOINT (OBSOLETE)N/A
999A1139-2083-01SEAL KIT£123.56 Add to
