Hand Controls

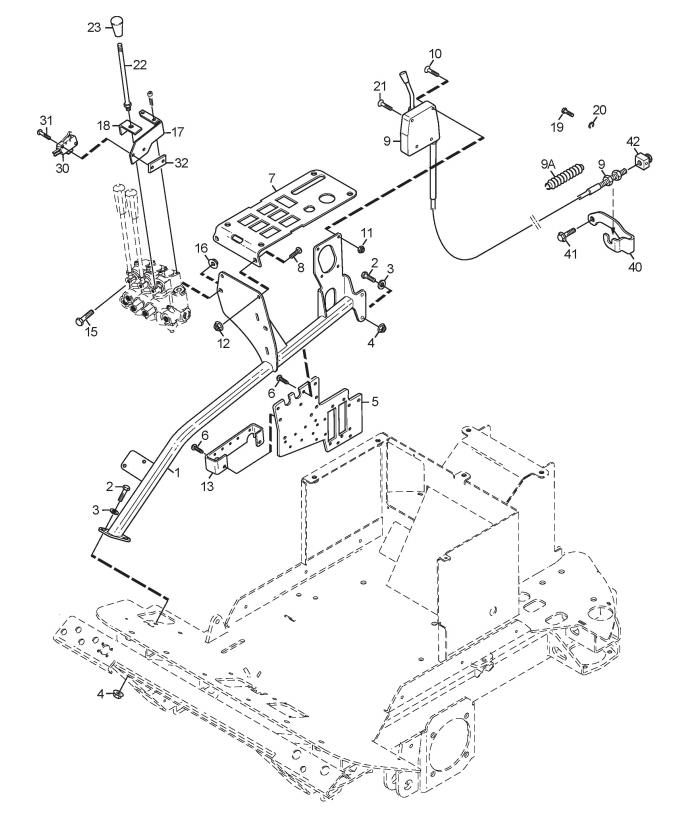

Hand Controls assembly details for Stiga TITAN 540 D 2013 (13-7454-11) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-2577-01	CONTROL ATTACHMENT	£354.63	Add to
002	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
003	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
004	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	9893-0616-16	SCREW M6 x 16	£2.47	Add to
008	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
009	1134-7257-04	THROTTLE CABLE ASSEMBLY	£227.14	Add to
010	9946-0525-16	SCREW M5 x 25	£2.47	Add to
011	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
014	1137-0641-01	HAND OPERATED VALVE	£1,369.79	Add to
015	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
017	1134-7474-01	SWITCH BRACKET	£36.52	Add to
018	1135-3127-01	SWITCH ARM	£8.14	Add to
019	9997-0416-16	SCREW M6S M4 X 16	£3.64	Add to
020	9652-0007-04	CIRCLIP	£2.32	Add to
021	9946-0525-16	SCREW M5 x 25	£2.47	Add to
022	1135-2497-01	LEVER	£17.59	Add to
023	1135-2498-01	KNOB	£7.78	Add to
030	9400-0360-01	MICRO SWITCH	£8.60	Add to
031	9840-7716-16	SCREW	£2.32	Add to
040	1137-0563-01	THROTTLE CABLE BRACKET	£15.08	Add to
041	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
099	1135-3948-01	RUBBER SLEEVE	£15.13	Add to
