Electrical System (1)

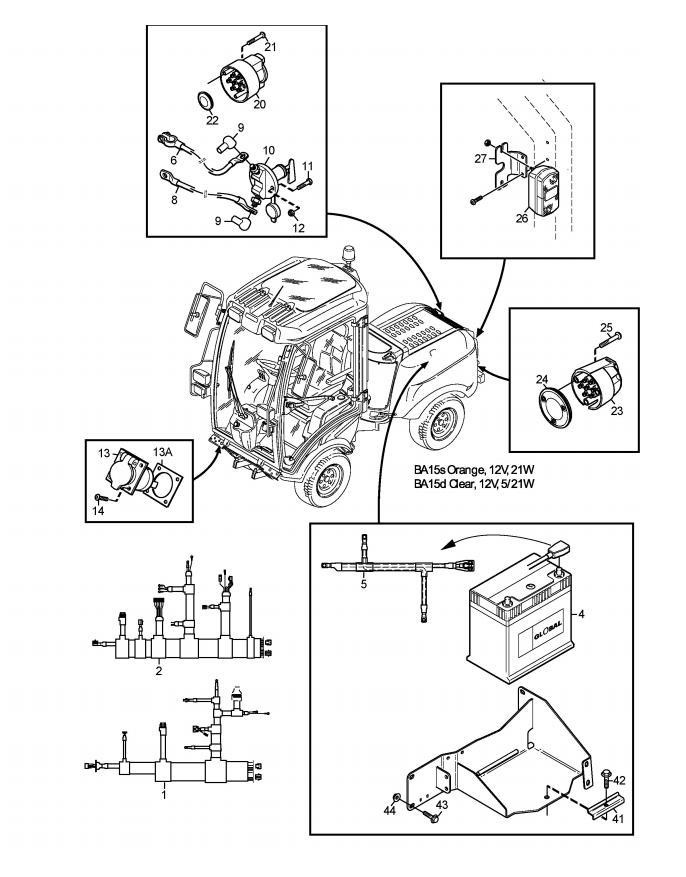

Electrical System (1) assembly details for Stiga TITAN 540 D 2013 (13-7454-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-0661-01REAR HARNESS L/H£461.16 Add to
0021137-0662-01REAR HARNESS R/H£605.41 Add to
0051137-0663-01BATTERY HARNESS (+)£170.27 Add to
0109400-0316-01MAIN SWITCH£71.82 Add to
0119959-0616-16SCREW M6SF M6 x 16£2.90 Add to
012112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0131134-7535-01FEMALE TERMINAL£8.15 Add to
0149840-7716-16SCREW£3.15 Add to
0209400-0347-01SOCKET 7-POLE£27.72 Add to
0219947-0540-19SCREW£2.90 Add to
0229403-0056-01MEMBRANE GROMMET£6.23 Add to
023084-036-01PLUG CONTACT£68.25 Add to
0259946-0525-16SCREW M5 x 25£3.28 Add to
0401137-0509-01BATTERY HOLDER£165.06 Add to
0411134-6943-01BATTERY CLAMP£18.52 Add to
0429959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
043112800815/0SCREW TE FL M8 x 16£2.90 Add to
044112154220/0SELF-LOCK NUT M8£2.90 Add to
9991134-6318-01SEAL£3.35 Add to
