Body Work

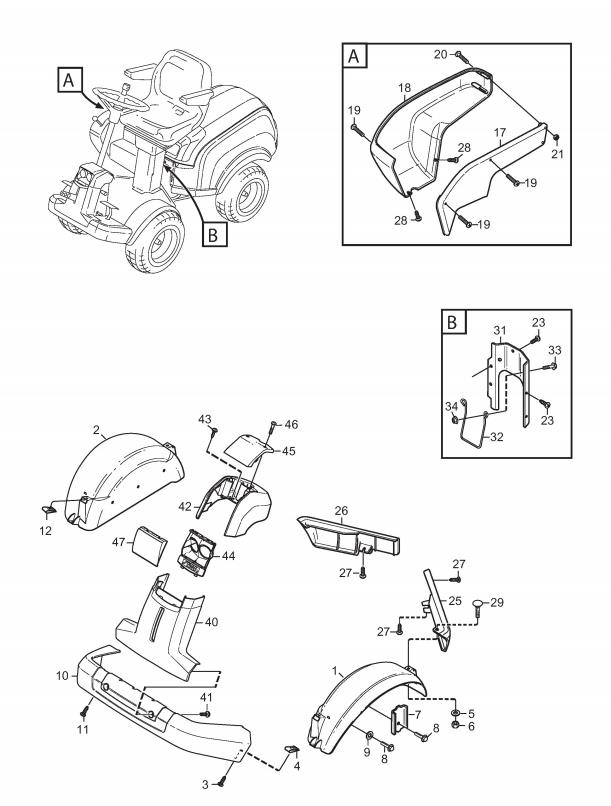

Body Work assembly details for Stiga PARK ROYAL 4WD 2013 (13-6312-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-0048-01LEFT FRONT MUDGUARD£109.62 Add to
0021137-0048-02RIGHT FRONT MUDGUARD£109.62 Add to
0039893-0616-16SCREW M6 x 16£3.28 Add to
0041134-4176-01CLIP£5.80 Add to
005112523040/0WASHER M6 6.6 x 18 x 1.6£2.90 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0071137-0088-01SUPPORT PLATE£3.53 Add to
0081134-4242-01SPACER WASHER£5.42 Add to
009112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0101137-0049-01FRONT BUMPER£69.30 Add to
0119893-0616-16SCREW M6 x 16£3.28 Add to
0121134-4176-01CLIP£5.80 Add to
0171134-4360-01INNER COVER£63.00 Add to
0181134-3979-01OUTER COVER£95.76 Add to
0199946-0525-16SCREW M5 x 25£3.28 Add to
0209950-0570-12SCREW M5 x 70£3.53 Add to
021112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.90 Add to
0239893-0616-16SCREW M6 x 16£3.28 Add to
0251134-3970-05LEFT MOULDING [GREY]£55.44 Add to
0261134-3970-02RIGHT MOULDING [GREY]£55.44 Add to
0279893-0616-16SCREW M6 x 16£3.28 Add to
0289840-8013-16SCREW 4.8 x 13£2.90 Add to
0299897-0616-16SCREW£3.28 Add to
0311134-6461-01REAR PLATE£32.76 Add to
0401137-0050-01LOWER FRONT PANEL£22.18 Add to
0419838-9516-12SCREW K50 x 16£3.28 Add to
0421137-0051-01UPPER FRONT PANEL£20.52 Add to
0439946-0525-16SCREW M5 x 25£3.28 Add to
0441137-0052-01LAMP HOLDER£6.80 Add to
045337502506/0FRONT BUMPER (YELLOW)£19.14 Add to
0469838-9516-12SCREW K50 x 16£3.28 Add to
0471137-0054-01LAMP GLASS£8.82 Add to
