Steering

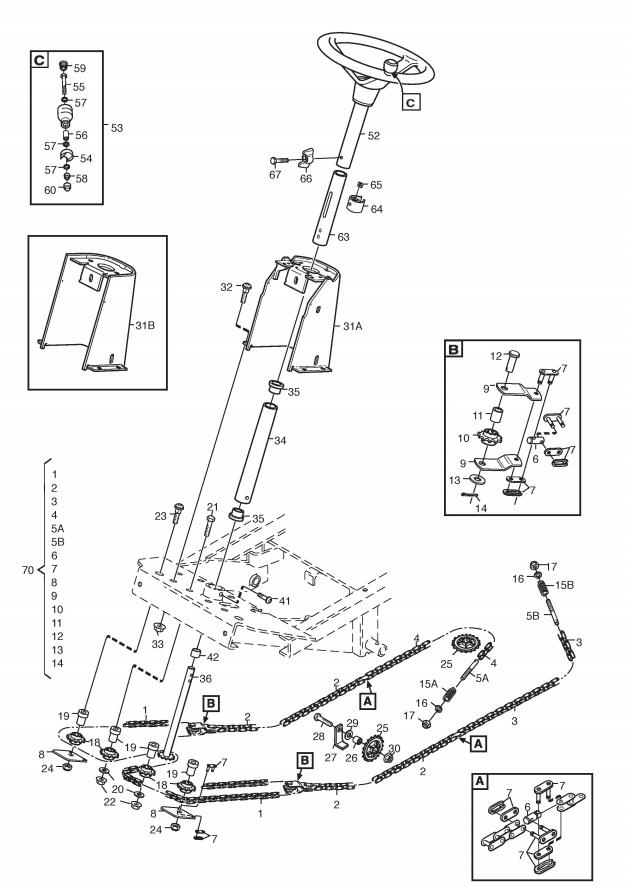

Steering assembly details for Stiga PARK RANGER SVAN 2013 (13-6379-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6374-10CHAIN (129 LINKS)£26.21 Add to
0021134-6374-09CHAIN (35 LINKS)£11.97 Add to
003187000352/0STEERING CHAIN 41M ELITE FM W/SERVO£27.72 Add to
0041134-6374-05CHAIN (47 LINKS)£15.42 Add to
0051134-3550-01END NIPPLE [L=110]£18.14 Add to
0051134-3550-02END NIPPLE [L=90]£17.89 Add to
0061134-3565-01CONNECTION NIPPLE£15.95 Add to
007187060100/0STEERING CHAIN LINK£6.55 Add to
0081134-5652-01ATTACHMENT PLATE£6.05 Add to
0091134-5651-01BRACKET£5.02 Add to
0101134-2816-01SPROCKET£10.96 Add to
0111134-0041-02BUSH£10.33 Add to
0121134-4817-01PIN£12.98 Add to
013112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0149599-0054-02SPLIT PIN£3.15 Add to
0151134-3817-01COMPRESSION SPRING£12.98 Add to
0151134-3817-02COMPRESSION SPRING£12.73 Add to
0169699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
017112154220/0SELF-LOCK NUT M8£2.90 Add to
0181134-2816-01SPROCKET£10.96 Add to
0191134-5653-01SPACER£9.45 Add to
020112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0219997-1060-12SCREW M6S M10 x 60£3.35 Add to
0229739-1031-22NUT M10£3.15 Add to
0239897-1060-12SCREW M10 x 60£4.03 Add to
0249731-1031-22LOCK NUT M6MF M10£3.28 Add to
0251134-3547-01SPROCKET£12.98 Add to
0261134-0041-01BUSH£9.70 Add to
0271134-3022-01BRACKET£59.22 Add to
0289997-1040-16SCREW M6S 10 x 40£7.69 Add to
029112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0309739-1031-22NUT M10£3.15 Add to
0329897-0820-16SCREW M8 x 20£3.15 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0351134-1901-01PLASTIC BUSH£12.35 Add to
0361137-0120-02STEERING ROD ASSEMBLY£41.58 Add to
0419893-0616-16SCREW M6 x 16£3.28 Add to
0421134-2837-03SPACER£11.59 Add to
0531134-3769-01STEERING WHEEL BUTTON KIT£35.28 Add to
0559997-0870-16SCREW M6S M8 x 70£3.28 Add to
0561134-1565-06SPACER£11.47 Add to
0579699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
058112154220/0SELF-LOCK NUT M8£2.90 Add to
059118566110/0HANDLE CAP D=22 [BLACK]£2.90 Add to
060118203854/0NUT CAP M8 [BLACK]£2.90 Add to
0631137-0070-01INNER STEERING TUBE£57.96 Add to
0641134-5177-01SLIDE COLLAR£13.61 Add to
0659710-0631-12SQUARE NUT£4.28 Add to
0661134-4481-02WING NUT£6.68 Add to
067112792099/0HEX HEAD SCREW M6 x 30£2.65 Add to
0701134-6380-03STEERING CHAIN ASSEMBLY£185.46 Add to
