Steering

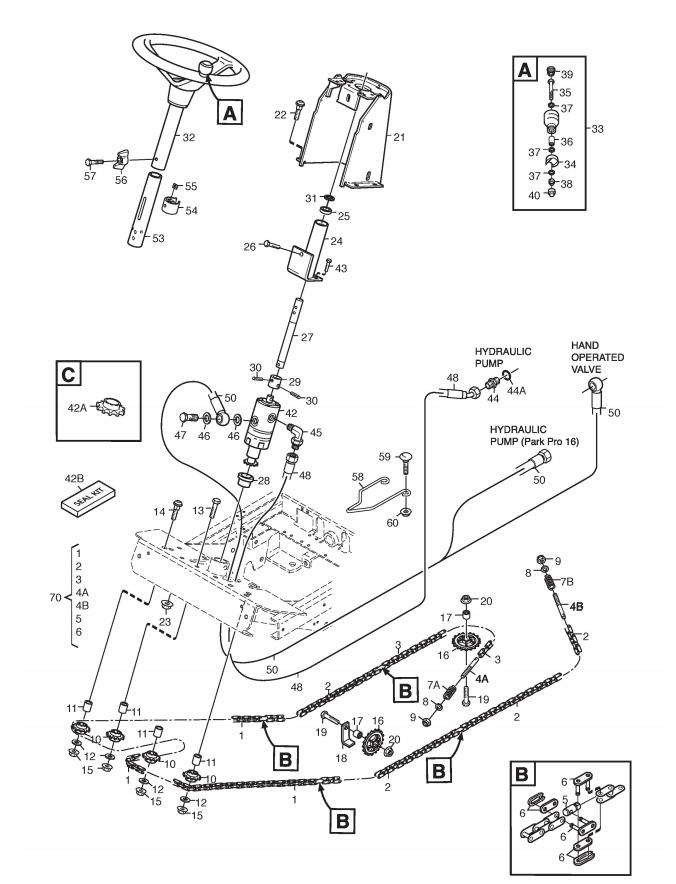

Steering assembly details for Stiga PARK PRO 25 4WD 2013 (13-6276-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001187000351/0STEERING CHAIN 83M ELITE PC-PCH W/SERVO£34.02 Add to
002187000352/0STEERING CHAIN 41M ELITE FM W/SERVO£27.72 Add to
0031134-6374-04CHAIN (45 LINKS)£15.88 Add to
0041134-3550-01END NIPPLE [L=110]£18.14 Add to
004A1134-3550-02END NIPPLE [L=90]£17.89 Add to
0051134-3565-01CONNECTION NIPPLE£15.95 Add to
006187060100/0STEERING CHAIN LINK£6.55 Add to
0071134-3817-01COMPRESSION SPRING£12.98 Add to
007A1134-3817-02COMPRESSION SPRING£12.73 Add to
0089699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
009112154220/0SELF-LOCK NUT M8£2.90 Add to
0101134-2816-01SPROCKET£10.96 Add to
0111134-0041-02BUSH£10.33 Add to
012112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0139997-1050-16SCREW M6S M10 x 50£3.65 Add to
0149897-1040-12SCREW M10 x 40£4.22 Add to
0159739-1031-22NUT M10£3.15 Add to
0161134-3547-01SPROCKET£12.98 Add to
0171134-0041-01BUSH£9.70 Add to
0181134-3022-01BRACKET£59.22 Add to
0199997-1030-16SCREW M6S M10 x 30£3.78 Add to
0209739-1031-22NUT M10£3.15 Add to
0211137-0066-01STEERING COLUMN COVER£129.52 Add to
0229897-0820-16SCREW M8 x 20£3.15 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0241137-0044-01STEERING COLUMN ASSEMBLY£60.48 Add to
0259549-0017-00BALL BEARING£12.22 Add to
0269945-0816-16SCREW M8 X 16£3.35 Add to
0271137-0045-01STEERING ROD£50.97 Add to
0281134-4114-01BUSH£19.43 Add to
0291134-4118-01COUPLING£21.80 Add to
0309595-0256-01LOCATING PIN£3.28 Add to
0319695-0011-00WASHER 16 x 22 x 1£3.28 Add to
0321134-5173-02STEERING WHEEL C/W KNOB£177.66 Add to
0331134-3769-01STEERING WHEEL BUTTON KIT£35.28 Add to
0341134-3752-01KNOB HOLDER£7.59 Add to
0359997-0870-16SCREW M6S M8 x 70£3.28 Add to
0361134-1565-06SPACER£11.47 Add to
0379699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
038112154220/0SELF-LOCK NUT M8£2.90 Add to
039118566110/0HANDLE CAP D=22 [BLACK]£2.90 Add to
040118203854/0NUT CAP M8 [BLACK]£2.90 Add to
042187305501/1STEERING BOOSTER£631.26 Add to
042A187305501/1STEERING BOOSTER£631.26 Add to
042B1139-2106-01PINION (STEERING BOOSTER)£147.42 Add to
0439939-0612-16SCREW M6 x 12£3.15 Add to
044387520119/0LOWER STEERING COLUMN£68.10 Add to
044A9404-0028-01O RING 11.89 x 1.98£5.42 Add to
0451134-7073-01HYDRAULIC COUPLING 90°£32.76 Add to
0461134-4948-02SEAL WASHER 3/8"£2.90 Add to
0471134-6323-01BANJO BOLT 3/8"£10.71 Add to
0481137-0196-01HYDRAULIC HOSE 45° 3/8"£82.23 Add to
0501137-0197-03HYDRAULIC HOSE£69.97 Add to
050A1137-0216-01HYDRAULIC HOSE L=2050mm£98.28 Add to
0531137-0070-01INNER STEERING TUBE£57.96 Add to
0541134-5177-01SLIDE COLLAR£13.61 Add to
0559710-0631-12SQUARE NUT£4.28 Add to
0561134-4481-02WING NUT£6.68 Add to
057112792099/0HEX HEAD SCREW M6 x 30£2.65 Add to
0599897-0616-16SCREW£3.28 Add to
060112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
070387106407/0STEERING CHAIN ASSEMBLY [PCH c/w SERVO]£234.36 Add to
