Hand Controls

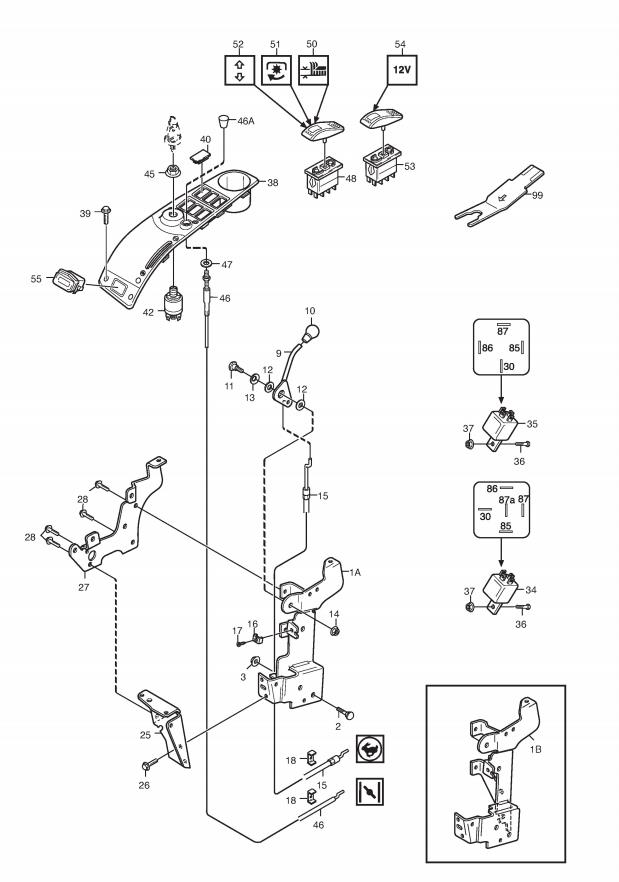

Hand Controls assembly details for Stiga PARK PRO 25 4WD 2013 (13-6276-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001A	1134-4156-01	INNER PANEL BRACKET	£60.24	Add to
001B	1134-6324-01	PANEL BRACKET	£57.52	Add to
002	9897-0820-16	SCREW M8 x 20	£2.32	Add to
003	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
009	1134-5465-02	THROTTLE LEVER	£17.59	Add to
010	1134-4078-01	KNOB	£5.87	Add to
011	1134-0240-00	SCREW	£9.14	Add to
012	1134-4242-01	SPACER WASHER	£4.78	Add to
013	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
014	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
015	1137-0063-01	THROTTLE CABLE	£29.06	Add to
016	1137-0115-01	WIRE CLAMP	£2.18	Add to
017	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
018	1137-0115-01	WIRE CLAMP	£2.18	Add to
025	1134-6328-01	SPACER	£19.93	Add to
026	9893-0616-16	SCREW M6 x 16	£2.47	Add to
027	1134-6327-01	FRONT PLATE	£21.82	Add to
028	9893-0616-16	SCREW M6 x 16	£2.47	Add to
034	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
035	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
036	112789000/0	SCREW TE M5 x 12	£2.06	Add to
037	9739-0531-22	NUT M5	£2.47	Add to
038	1134-6096-09	DASHBOARD	£31.34	Add to
039	9946-0525-16	SCREW M5 x 25	£2.47	Add to
040	1134-4129-01	COVER	£6.14	Add to
042	1134-4093-01	IGNITION SWITCH	£67.05	Add to
045	1134-4749-01	NUT	£5.05	Add to
046	1134-4338-01	CHOKE CONTROL BUTTON	£15.81	Add to
046A	1137-0062-01	CHOKE CONTROL CABLE	£84.22	Add to
047	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
048	9400-0282-01	SWITCH C/W DIODE	£76.59	Add to
050	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
051	9400-0280-01	SWITCH COVER-PTO	£19.77	Add to
052	9400-0280-04	SWITCH COVER-REAR TOOLS	£19.36	Add to
053	9400-0283-01	SWITCH	£92.95	Add to
054	9400-0280-05	SWITCH 12V	£6.27	Add to
055	9400-0384-01	HOUR METER	£94.31	Add to
099	9400-0290-01	TOOL	£27.27	Add to
