Electrical System

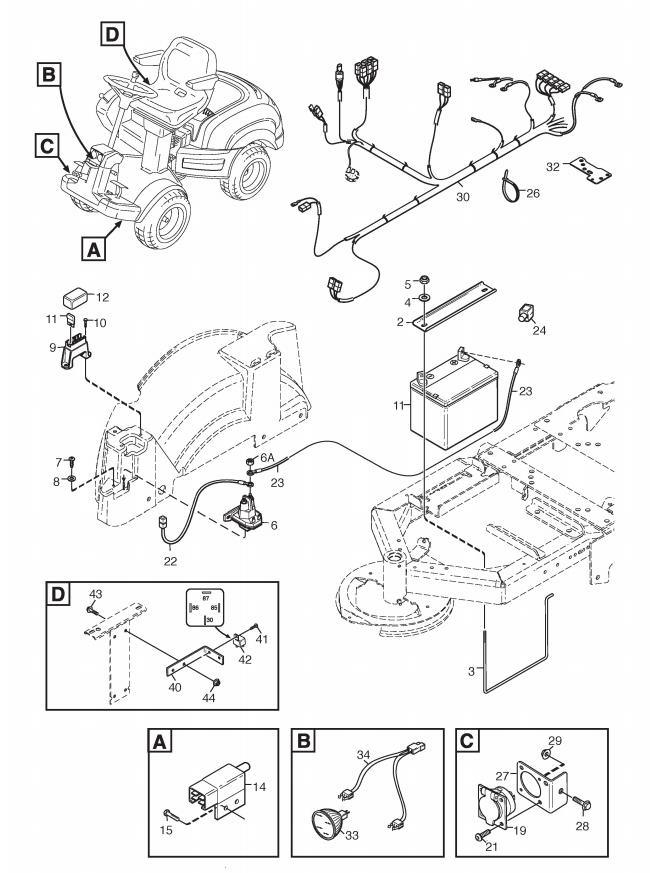

Electrical System assembly details for Stiga PARK PRO 25 4WD 2013 (13-6276-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-5643-01BATTERY PLATE£17.14 Add to
0031134-5642-01BATTERY LOOP£14.49 Add to
004112523040/0WASHER M6 6.6 x 18 x 1.6£2.90 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
006118736112/0SOLENOID£37.80 Add to
0079838-9516-12SCREW K50 x 16£3.28 Add to
008112523040/0WASHER M6 6.6 x 18 x 1.6£2.90 Add to
0091134-3491-01FUSE HOLDER£13.68 Add to
0109838-9516-12SCREW K50 x 16£3.28 Add to
0111134-3496-01FUSE 10A£2.90 Add to
011A1134-3496-06FUSE 20A£2.65 Add to
011B1134-3496-07FUSE 30A£5.67 Add to
0121134-3631-01COVER-FUSE HOLDER£12.98 Add to
0141134-3399-01SWITCH£42.84 Add to
015112735654/0SELF-TAPPING SCREW M5 x 16£3.53 Add to
0191134-7535-01FEMALE TERMINAL£8.15 Add to
0219840-7716-16SCREW£3.15 Add to
0221134-4970-01CABLE£16.13 Add to
0231134-0234-02BATTERY CABLE (+)£24.07 Add to
0241134-2310-01GUARD CAP (+)£9.58 Add to
0269579-0003-00CABLE HOLDER£2.90 Add to
0271137-0075-01ATTACHMENT BRACKET£10.19 Add to
0289959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
029112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0301134-6455-01WIRE HARNESS£574.56 Add to
030A1137-0172-01HARNESS£769.86 Add to
0321134-6454-01GROUND PLATE£15.25 Add to
033118459102/0LED-LAMP GE 10/3 5W£25.03 Add to
0341134-7505-01WIRE HARNESS£120.96 Add to
0401137-0203-01BRACKET£19.65 Add to
0419893-0616-16SCREW M6 x 16£3.28 Add to
0421134-2871-01DECK RELAY [4 SPADE]£42.84 Add to
0439959-0612-16SCREW M6SF M6 x 12 TL£2.65 Add to
044112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
