Pedal Lift

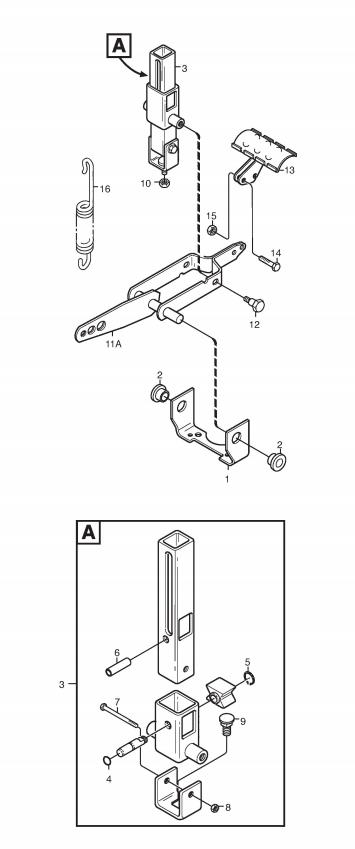

Pedal Lift assembly details for Stiga PARK PRO 16 4WD 2013 (13-6271-17) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4117-01	BRACKET	£32.99	Add to
002	1134-2684-01	BUSH	£7.10	Add to
003	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
004	9404-0027-01	O RING 4.48 X 1.78	£3.00	Add to
005	9650-0039-04	CIRCLIP 8mm	£2.47	Add to
006	9595-0276-01	LOCATING PIN	£3.55	Add to
007	112689500/0	SCREW M6 x 40	£2.06	Add to
008	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
009	9897-0820-16	SCREW M8 x 20	£2.32	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-0240-00	SCREW	£9.14	Add to
013	1134-4938-01	LIFT PEDAL	£24.95	Add to
014	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
015	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
016	4231-0013-00	SPRING	£8.87	Add to
