Engine

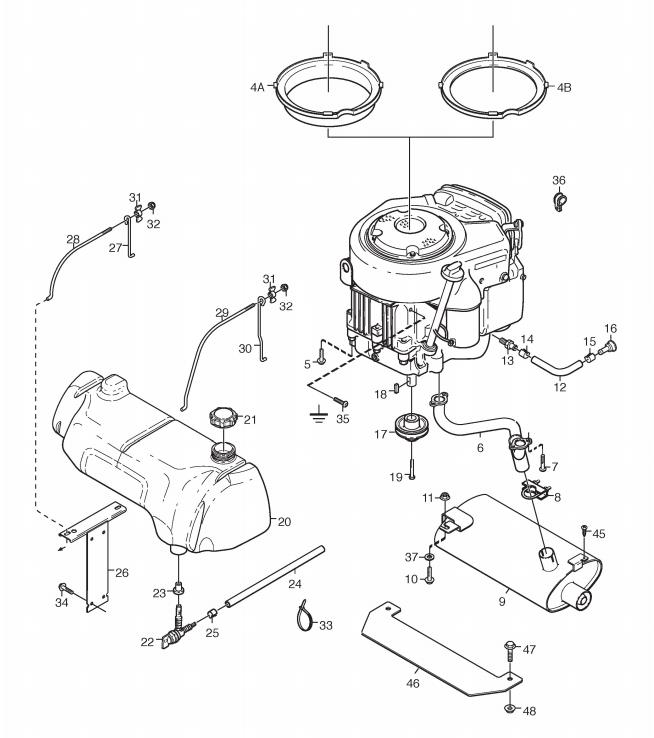

Engine assembly details for Stiga PARK PRO 16 4WD 2013 (13-6271-17) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
004	1134-6116-01	AIR DUCT	£17.59	Add to
004	1134-6116-04	AIR DUCT	£17.86	Add to
005	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
006	118738262/0	EXHAUST PIPE	£168.90	Add to
006	1137-0083-01	EXHAUST PIPE	£152.39	Add to
007	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
008	9578-0011-01	TUBE CLAMP	£14.58	Add to
009	1137-0073-01	MUFFLER	£250.74	Add to
010	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-5827-01	OIL DRAIN ASSEMBLY	£41.16	Add to
013	1134-5825-01	NIPPLE	£58.87	Add to
014	9578-0023-04	HOSE CLAMP	£5.32	Add to
015	9578-0023-00	HOSE CLAMP	£24.95	Add to
016	1134-5826-01	PLUG	£24.95	Add to
017	1137-0207-01	ENGINE PULLEY	£38.44	Add to
018	9600-0251-00	KEY L=3/4"	£4.91	Add to
019	9987-5364-12	SCREW U6S 7/16" UNF x 64mm (OBSOLETE) (OBSOLETE)	N/A
019	112737320/0	THREADED SCREW 7/16" x 3" 20 UNF	£4.78	Add to
020	1134-5644-01	FUEL TANK	£135.19	Add to
021	125795001/1	FUEL TANK CAP	£8.32	Add to
022	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
023	1134-3225-01	GROMMET	£7.57	Add to
024	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
025	9578-0023-02	HOSE CLAMP	£5.73	Add to
026	1134-5615-01	FUEL TANK BRACKET	£38.04	Add to
027	1134-5621-01	TANK LOOP	£62.97	Add to
028	1134-5622-01	TANK LOOP	£12.27	Add to
029	1134-5623-01	TANK LOOP	£14.45	Add to
030	1134-5765-01	TANK LOOP	£11.05	Add to
031	1134-4481-02	WING NUT	£6.14	Add to
032	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
033	9579-0003-00	CABLE HOLDER	£2.06	Add to
034	1134-4242-01	SPACER WASHER	£4.78	Add to
035	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
036	1134-0994-02	TUBE CLAMP	£7.10	Add to
037	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
045	9893-0616-16	SCREW M6 x 16	£2.47	Add to
046	1137-0072-01	DEFLECTOR	£65.69	Add to
047	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
048	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
