Body Work (1)

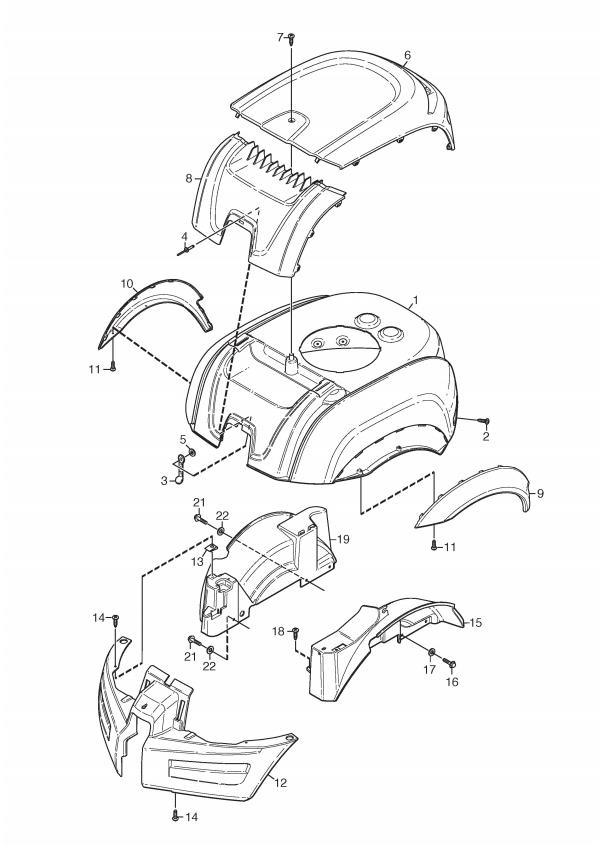

Body Work (1) assembly details for Stiga PARK PRO 16 4WD 2013 (13-6271-17) 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	9893-0616-16	SCREW M6 x 16	£2.47	Add to
003	1134-9028-01	RUBBER STRAP (3 PCS)	£26.46	Add to
004	9632-0513-00	POP RIVET 3.2 x 20	£2.06	Add to
005	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
007	9838-9516-12	SCREW K50 x 16	£2.47	Add to
011	9838-9516-12	SCREW K50 x 16	£2.47	Add to
013	1134-4176-01	CLIP	£5.19	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
016	1134-4242-01	SPACER WASHER	£4.78	Add to
017	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
018	9893-0616-16	SCREW M6 x 16	£2.47	Add to
021	1134-4242-01	SPACER WASHER	£4.78	Add to
022	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
