Assembly Parts

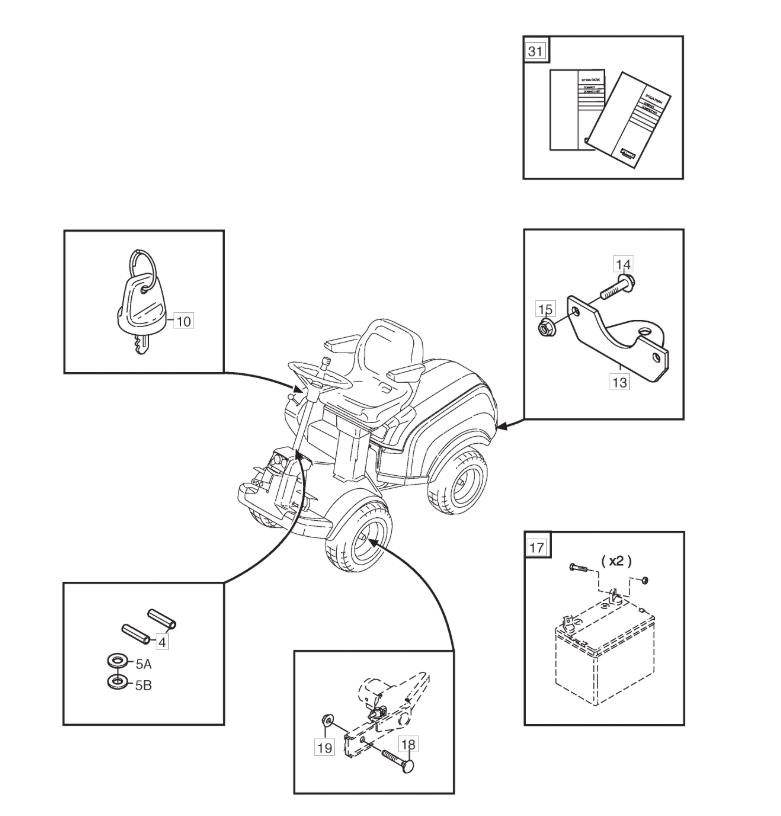

Assembly Parts assembly details for Stiga PARK EXCELLENT 16 (13-6310-11) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0049595-0262-00LOCATING PIN£1.96 Add to
0059699-0103-02WASHER£2.35 Add to
005A9699-0114-02WASHER 16 x 38 x 1£2.21 Add to
0101134-4734-01IGNITION KEY£16.88 Add to
0131134-5512-01TOWING PLATE£19.73 Add to
0149959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0171134-6113-02BATTERY SCREWS PACK£12.73 Add to
0189898-1035-16SCREW 10 x 35£3.00 Add to
0199739-1031-22NUT M10£2.21 Add to
