Body Work

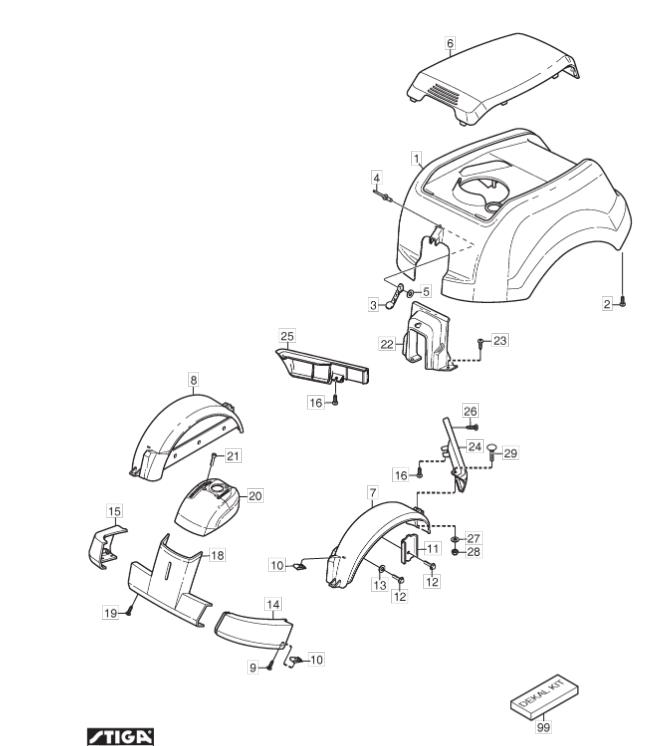

Body Work assembly details for Stiga PARK COMPACT 14 (13-6102-22) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5263-02ENGINE HOOD [YELLOW]£265.86 Add to
0029838-9530-12SCREW K50 x 30£3.28 Add to
0031134-9028-01RUBBER STRAP (3 PCS)£25.03 Add to
0049632-0516-00POP RIVET£3.28 Add to
0059699-0120-02WASHER 3.2 x 14 x 1.5£3.15 Add to
0061134-5264-01ENGINE COVER [GREY]£76.86 Add to
0071134-5308-01MUDGUARD LH [GREY]£88.20 Add to
0081134-5308-02MUDGUARD RH [GREY]£104.78 Add to
0099893-0616-16SCREW M6 x 16£3.28 Add to
0101134-4176-01CLIP£5.80 Add to
0111134-0225-00SUPPORT PLATE£11.34 Add to
0129945-0816-16SCREW M8 X 16£3.35 Add to
013112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0141134-5306-01FRONT BUMPER LH [GREY]£24.07 Add to
015337502505/0FRONT BUMPER RH [GREY]£52.92 Add to
0169893-0616-16SCREW M6 x 16£3.28 Add to
0181134-5305-01FRONT BUMPER [YELLOW]£79.38 Add to
0199893-0616-16SCREW M6 x 16£3.28 Add to
0201134-5320-02FRONT UPPER COVER [YELLOW]£55.44 Add to
0219946-0525-16SCREW M5 x 25£3.28 Add to
0221134-6241-01HOOD SUPPORT£40.32 Add to
0239893-0616-16SCREW M6 x 16£3.28 Add to
0241134-3970-05LEFT MOULDING [GREY]£55.44 Add to
0251134-3970-02RIGHT MOULDING [GREY]£55.44 Add to
0269893-0616-16SCREW M6 x 16£3.28 Add to
027112523040/0WASHER M6 6.6 x 18 x 1.6£2.90 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0299897-0616-16SCREW£3.28 Add to
