Steering assembly details for Stiga VILLA 14 HST (13-2718-14) 2012 model

Parts list

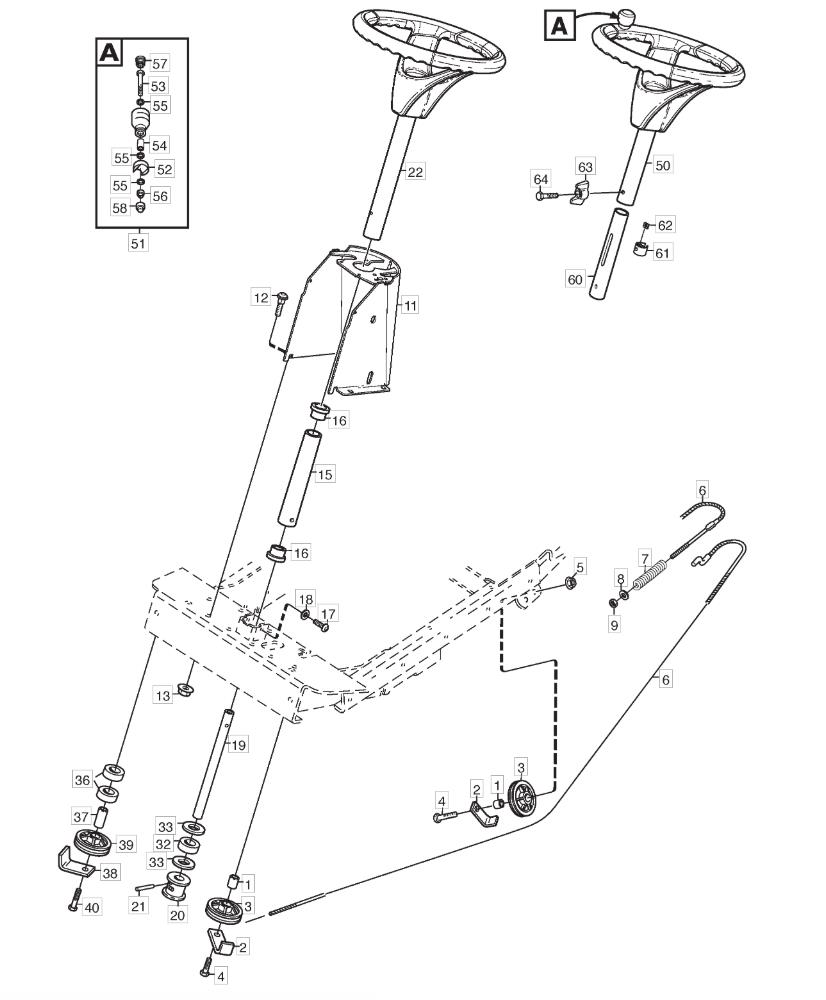

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-0041-01BUSH£9.70 Add to
0021134-3022-01BRACKET£59.22 Add to
0031134-9025-01STEERING PULLEY [2 PCS]£19.57 Add to
0049997-1040-16SCREW M6S 10 x 40£7.69 Add to
0059739-1031-22NUT M10£3.15 Add to
0061134-9154-01STEERING CABLE£49.14 Add to
0071134-1310-01SPRING£18.77 Add to
008112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
009112154220/0SELF-LOCK NUT M8£2.90 Add to
0129897-0820-16SCREW M8 x 20£3.15 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0151134-1305-05LOWER STEERING COLUMN£45.36 Add to
0161134-1901-01PLASTIC BUSH£12.35 Add to
0179893-0616-16SCREW M6 x 16£3.28 Add to
018112523040/0WASHER M6 6.6 x 18 x 1.6£2.90 Add to
0191134-5495-01STEERING ROD£86.94 Add to
0201134-1933-01STEERING PULLEY£54.14 Add to
0219595-0262-00LOCATING PIN£2.90 Add to
0221134-5496-01STEERING WHEEL ASSEMBLY£196.56 Add to
0321134-3047-01SPACER£8.44 Add to
033112521390/0WASHER M16 17 x 30 x 3£2.77 Add to
0361134-3047-01SPACER£8.44 Add to
0371134-0041-05BUSH£11.59 Add to
0381134-3022-01BRACKET£59.22 Add to
0391134-9025-01STEERING PULLEY [2 PCS]£19.57 Add to
0409997-1060-12SCREW M6S M10 x 60£3.35 Add to
0501134-6330-02STEERING WHEEL ASSY£108.59 Add to
0511134-3769-01STEERING WHEEL BUTTON KIT£35.28 Add to
0521134-3752-01KNOB HOLDER£7.59 Add to
0539997-0870-16SCREW M6S M8 x 70£3.28 Add to
0541134-1565-06SPACER£11.47 Add to
0559699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
056112154220/0SELF-LOCK NUT M8£2.90 Add to
057118566110/0HANDLE CAP D=22 [BLACK]£2.90 Add to
058118203854/0NUT CAP M8 [BLACK]£2.90 Add to
0601134-5216-02INNER STEERING TUBE£86.94 Add to
0611134-5177-01SLIDE COLLAR£13.61 Add to
0629710-0631-12SQUARE NUT£4.28 Add to
0631134-4481-02WING NUT£6.68 Add to
064112792099/0HEX HEAD SCREW M6 x 30£2.65 Add to
