Electric System

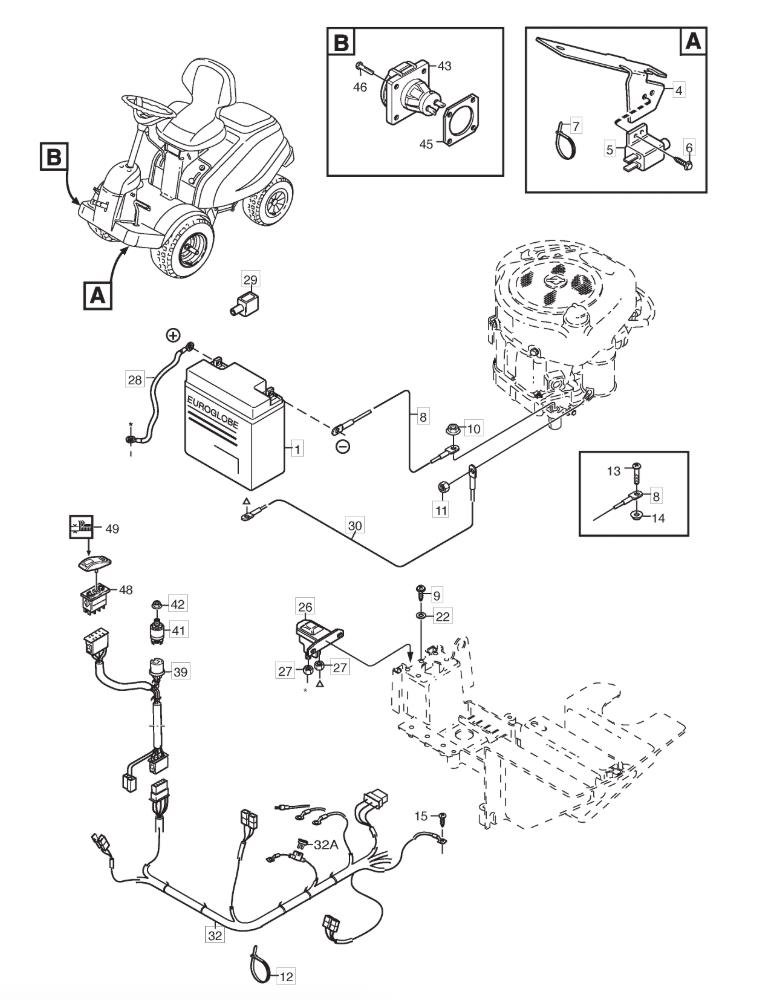

Electric System assembly details for Stiga VILLA 14 HST (13-2718-14) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
0041134-4610-01BRACKET£24.95 Add to
0051134-3399-02SWITCH£45.26 Add to
0069852-8013-16SCREW£2.47 Add to
0079579-0003-00CABLE HOLDER£2.06 Add to
0081134-2042-02BATTERY CABLE L=350mm£27.27 Add to
0099838-9516-12SCREW K50 x 16£2.47 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
022112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
026118736112/0SOLENOID£39.80 Add to
0281134-0234-02BATTERY CABLE (+)£24.95 Add to
0291134-2310-01GUARD CAP (+)£9.28 Add to
0301134-4702-02CABLE L=495£24.95 Add to
0321134-3496-06FUSE 20A£2.06 Add to
032a187040304/0WIRING HARNESS£143.37 Add to
0391134-6348-01CABLE HARNESS (VILLA)£32.99 Add to
0411134-4093-01IGNITION SWITCH£67.05 Add to
0421134-4749-01NUT£5.05 Add to
