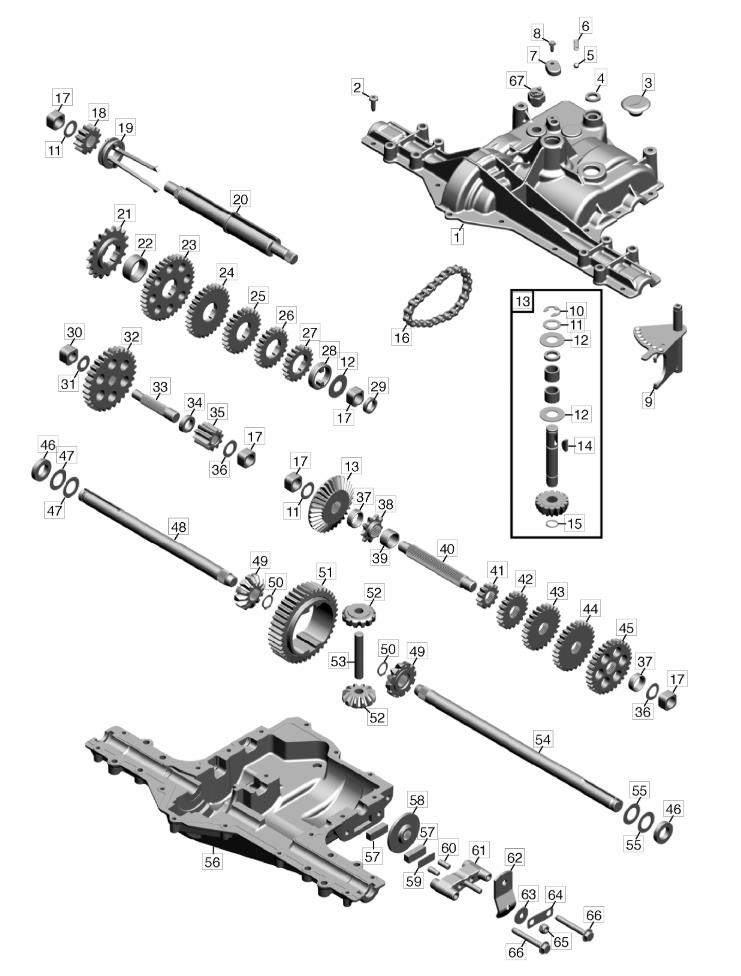

Transmission 1 assembly details for Stiga VILLA 12 (13-2717-11) 2012 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref | No | Description | Price | |
|---|
| 000 | 1134-6349-01 | TRANSAXLE (DANA 6800-8) | £1,409.14 | Add to |
| 002 | F000-1919-00 | SCREW,TAP | £5.45 | Add to |
| 003 | F004-1356-00 | RUBBER PLUG | £2.47 | Add to |
| 005 | F000-5947-00 | DETENT BALL (OBSOLETE) | N/A | |
| 008 | F084-0052-00 | SCREW | £5.92 | Add to |
| 010 | F000-1106-00 | CIRCLIP (OBSOLETE) | N/A | |
| 012 | F000-3876-00 | WASHER | £9.14 | Add to |
| 016 | F000-3625-00 | CHAIN,24 PITCHES | £101.13 | Add to |
| 021 | F000-3830-00 | SPROCKET,18T | £68.94 | Add to |
| 024 | F000-3867-00 | GEAR,SPUR,30T | £159.45 | Add to |
| 025 | F000-3783-00 | GEAR,SPUR,25T | £109.10 | Add to |
| 027 | F000-5202-00 | GEAR,SPUR, 19T | £88.77 | Add to |
| 028 | F000-5027-00 | SPACER | £20.31 | Add to |
| 037 | F000-3714-00 | SPACER | £12.21 | Add to |
| 041 | F000-5364-00 | GEAR, SPUR 12T | £15.91 | Add to |
| 042 | F000-3866-00 | GEAR,SPUR,20T | £61.73 | Add to |
| 043 | F000-3719-00 | GEAR SPUR 25T | £90.57 | Add to |
| 045 | F000-3683-00 | GEAR SPUR 31T | £130.18 | Add to |
| 047 | F000-3184-00 | WASHER,PLAIN | £9.62 | Add to |
| 049 | F000-5622-00 | GEAR, MITER 12T SPLINED (OBSOLETE) | N/A | |
| 050 | F000-5270-00 | RETAINING RING | £2.32 | Add to |
| 053 | F000-3919-00 | SHAFT,CROSS | £38.33 | Add to |
| 059 | F000-3758-00 | SPACER (OBSOLETE) (OBSOLETE) | N/A | |
| 060 | F000-3843-00 | DOWEL PIN (OBSOLETE) | N/A | |
| 063 | F000-3760-00 | WASHER,PLAIN | £4.52 | Add to |
| 064 | F000-5555-00 | ANTI-ROTATION BRACKET (OBSOLETE) | N/A | |
| 066 | F000-5562-00 | SCREW | £6.69 | Add to |
| 067 | 119410610/0 | NEUTRAL SWITCH [MECHANICAL] | £54.79 | Add to |
