Frame

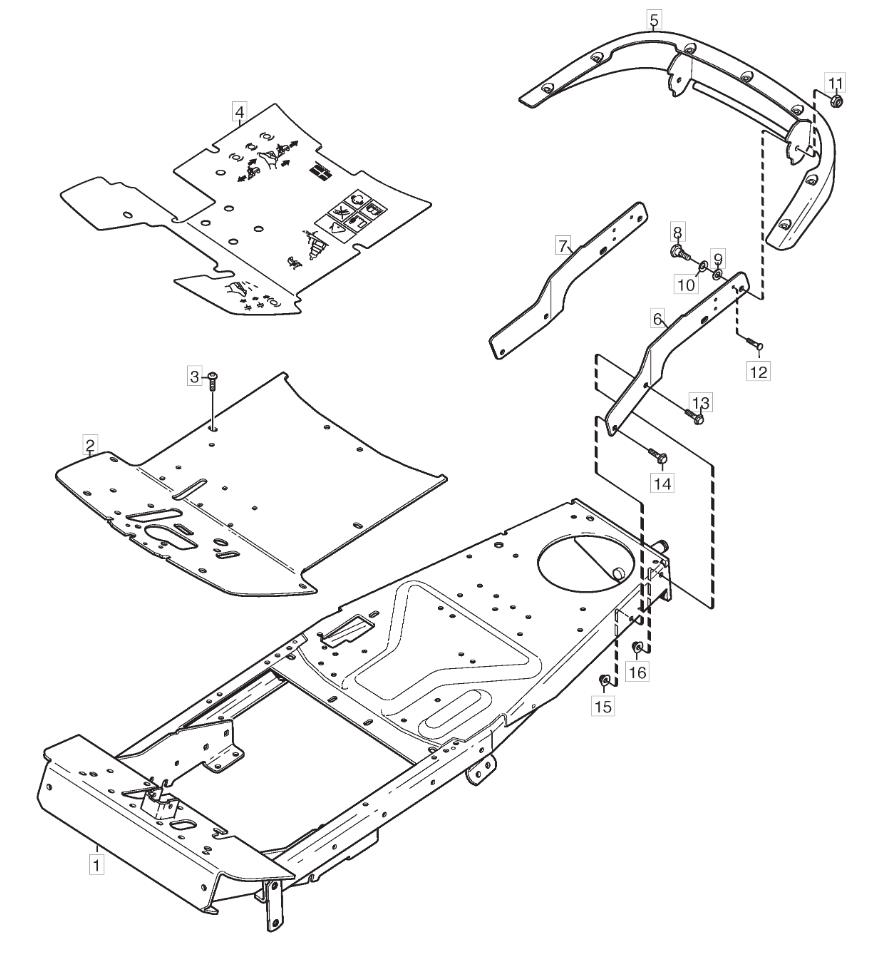

Frame assembly details for Stiga VILLA 12 (13-2717-11) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5546-02FRAME ASSEMBLY£430.36 Add to
0021134-5293-01FLOOR PLATE (GREY) (OBSOLETE)N/A
0039893-0616-16SCREW M6 x 16£2.35 Add to
0041134-5338-03FLOOR MAT-MANUAL£65.08 Add to
0051134-5453-03REAR BUMPER (GREY)£156.00 Add to
0081134-0240-00SCREW£8.70 Add to
0091134-4242-01SPACER WASHER£4.55 Add to
010122675110/0WASHER D=13.5 x 20.5 x 0.5£2.04 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
012112735654/0SELF-TAPPING SCREW M5 x 16£2.61 Add to
0139959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0149959-0825-16SCREW FLANGED TE M6SF M8 x 25£1.96 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
