Power Take-off

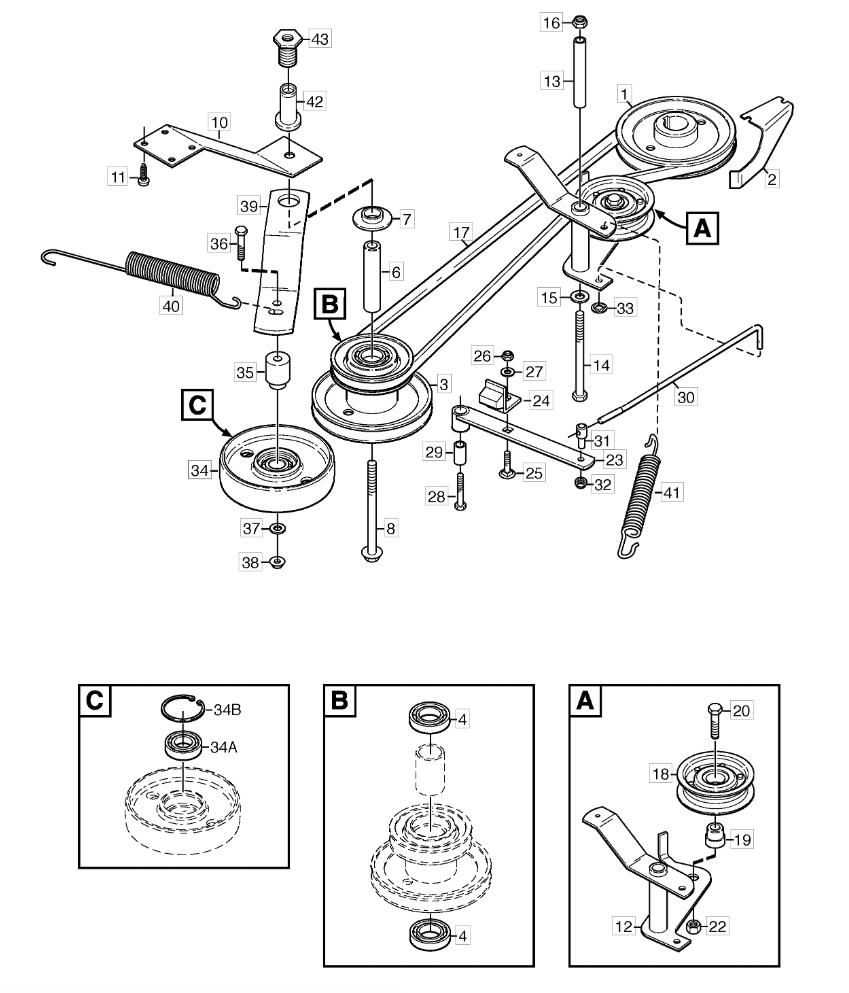

Power Take-off assembly details for Stiga PRIMO (13-2411-13) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6496-01BELT PULLEY£63.00 Add to
0021134-7803-01BELT GUIDE£9.24 Add to
0031134-6617-01INTERMEDIATE BELT PULLEY£102.06 Add to
0061134-6519-01SHAFT£7.64 Add to
0071134-5548-01SPACER£14.24 Add to
0081134-7745-01SCREW W LOCKING(M8 X 130MM)£4.71 Add to
0101134-6567-01SUPPORT PLATE£8.17 Add to
0119838-8822-19SCREW K60 x 22£2.90 Add to
0121134-6501-01CLUTCH LEVER£25.20 Add to
0131134-1565-17SPACER£7.36 Add to
0149997-0811-02SCREW M6S M8 x 110£4.41 Add to
015112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
016112154220/0SELF-LOCK NUT M8£2.90 Add to
0171134-9135-01PTO DRIVE BELT£32.01 Add to
0181134-6516-01TENSION PULLEY£14.87 Add to
0191134-6548-01SPACER£6.23 Add to
0209997-1040-16SCREW M6S 10 x 40£7.69 Add to
022112295200/0HEXAGON NUT M10£2.65 Add to
0231134-6497-01BRAKE LEVER£19.24 Add to
0241134-4164-03BRAKE PAD£31.50 Add to
0259897-0825-16SCREW M8 x 25£3.91 Add to
026112154220/0SELF-LOCK NUT M8£2.90 Add to
027112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0289997-0840-16SCREW M6S M8 x 40£2.90 Add to
0291134-1565-06SPACER£11.47 Add to
0301134-6500-01BRAKE ROD£7.36 Add to
0311134-4170-01PIVOT BOLT£14.24 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
033112604897/0STARLOCK WASHER D=5£2.90 Add to
0341137-0128-01TENSION PULLEY£45.70 Add to
034A9651-0040-04CIRCLIP£3.53 Add to
0351134-1888-04SPACER£9.70 Add to
036112691700/0SCREW M8 x 55£2.77 Add to
037112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0391134-6492-01TENSION LEVER£10.08 Add to
0401134-7867-01SPRING£15.42 Add to
0411134-5713-03SPRING£13.39 Add to
0421134-7865-01FLANGE SLEEVE£8.35 Add to
0431137-0021-01THREAD INSERT£7.42 Add to
