Engine

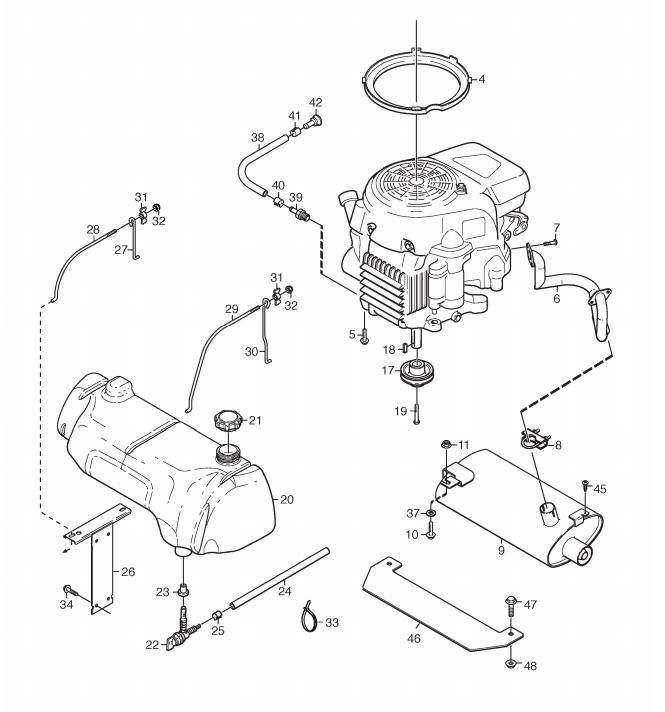

Engine assembly details for Stiga PARK PRO SVAN 4WD2012 (13-6272-26) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0041134-6116-02AIR DUCT£28.90 Add to
0059955-3725-16SCREW 3/8" x 25£2.87 Add to
0061134-5902-01EXHAUST PIPE£152.39 Add to
007112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
0089578-0011-01TUBE CLAMP£14.58 Add to
0091137-0073-01MUFFLER£250.74 Add to
0109959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0171137-0207-01ENGINE PULLEY£38.44 Add to
0189600-0251-00KEY L=3/4"£4.91 Add to
0199987-5364-12SCREW U6S 7/16" UNF x 64mm (OBSOLETE) (OBSOLETE)N/A
0201134-5644-01FUEL TANK£135.19 Add to
021125795001/1FUEL TANK CAP£8.32 Add to
0221134-3224-01FUEL SHUT-OFF VALVE£24.95 Add to
0231134-3225-01GROMMET£7.57 Add to
0241134-2975-15FUEL HOSE (L=1400)£32.99 Add to
0259578-0023-02HOSE CLAMP£5.73 Add to
0261134-5615-01FUEL TANK BRACKET£38.04 Add to
0271134-5621-01TANK LOOP£62.97 Add to
0281134-5622-01TANK LOOP£12.27 Add to
0291134-5623-01TANK LOOP£14.45 Add to
0301134-5765-01TANK LOOP£11.05 Add to
0311134-4481-02WING NUT£6.14 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0339579-0003-00CABLE HOLDER£2.06 Add to
0349945-0816-16SCREW M8 X 16£2.54 Add to
035112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
037112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0381134-5827-04OIL DRAIN ASSEMBLY£34.35 Add to
0391134-5825-01NIPPLE£58.87 Add to
0409578-0023-04HOSE CLAMP£5.32 Add to
0419578-0023-00HOSE CLAMP£24.95 Add to
0421134-5826-01PLUG£24.95 Add to
0459893-0616-16SCREW M6 x 16£2.47 Add to
0461137-0072-01DEFLECTOR£65.69 Add to
0479959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
