Body Work (1)

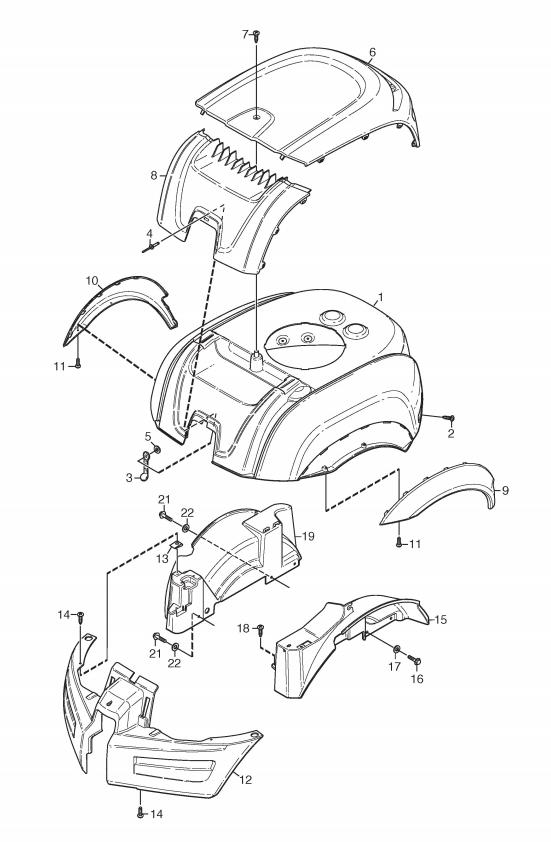

Body Work (1) assembly details for Stiga PARK PRO SVAN 4WD2012 (13-6272-26) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-5634-01ENGINE HOOD£309.96 Add to
0011137-0175-01ENGINE HOOD£328.86 Add to
0029893-0616-16SCREW M6 x 16£3.28 Add to
0031134-9028-01RUBBER STRAP (3 PCS)£25.03 Add to
0049632-0513-00POP RIVET 3.2 x 20£2.90 Add to
0059699-0120-02WASHER 3.2 x 14 x 1.5£3.15 Add to
0061134-5636-01ENGINE COVER£135.35 Add to
0079838-9516-12SCREW K50 x 16£3.28 Add to
0081134-5635-01ENGINE FRONT COVER£126.00 Add to
0091134-5638-01WHEEL ARCH LINER L/H£24.07 Add to
0101134-5638-02WHEEL ARCH LINER R/H£24.07 Add to
0119838-9516-12SCREW K50 x 16£3.28 Add to
0121134-5637-01SPOILER£171.36 Add to
0131134-4176-01CLIP£5.80 Add to
0149893-0616-16SCREW M6 x 16£3.28 Add to
0151134-5647-01INNER FENDER-LH£112.06 Add to
0161134-4242-01SPACER WASHER£5.42 Add to
017112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0189893-0616-16SCREW M6 x 16£3.28 Add to
0191134-5647-02INNER FENDER-RH£112.06 Add to
0211134-4242-01SPACER WASHER£5.42 Add to
022112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
