Hydraulic Lift

Hydraulic Lift assembly details for Stiga PARK PRO 25 4WD 2012 (13-6276-11) 2012 model

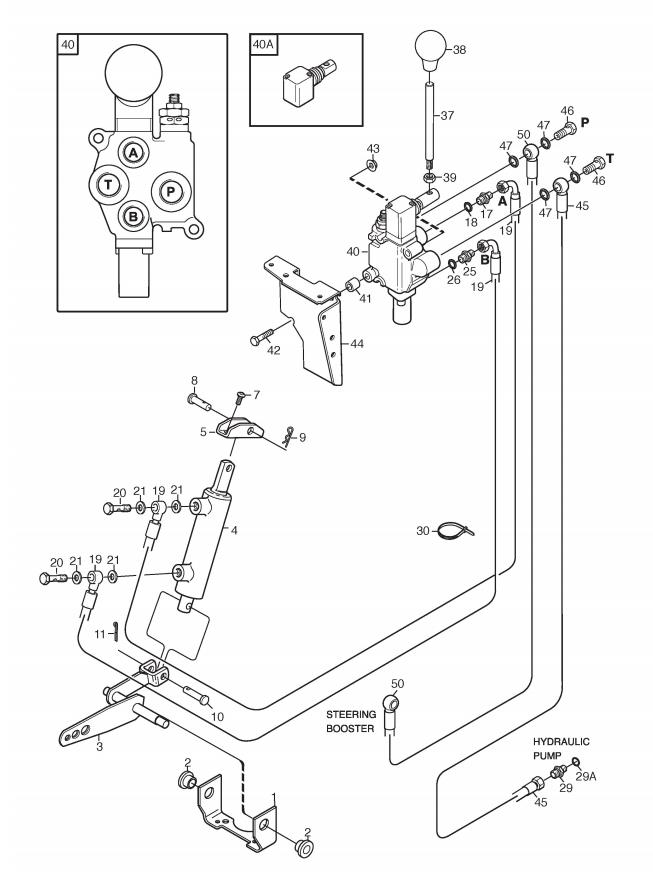

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4117-01	BRACKET	£32.99	Add to
002	1134-2684-01	BUSH	£7.10	Add to
003	1137-0039-01	LIFT ARM ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
004	1137-0071-01	HYDRAULIC CYLINDER	£368.20	Add to
005	1134-4815-01	CYLINDER BRACKET	£58.87	Add to
007	9893-0616-16	SCREW M6 x 16	£2.47	Add to
008	1134-4816-01	PIN	£13.64	Add to
009	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
010	1134-4817-01	PIN	£12.96	Add to
011	9599-0054-02	SPLIT PIN	£2.32	Add to
017	1134-4824-01	ADAPTER	£12.00	Add to
018	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
019	1137-0193-01	HYDRAULIC HOSE 90° 3/16"	£89.43	Add to
020	1134-4826-01	BANJO BOLT	£15.81	Add to
021	1134-4947-01	COPPER WASHER 10 x 14 x 1.5	£5.73	Add to
025	1134-4824-01	ADAPTER	£12.00	Add to
026	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
029	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
029A	9404-0028-01	O RING 11.89 x 1.98	£4.78	Add to
030	9579-0003-00	CABLE HOLDER	£2.06	Add to
037	1134-6345-01	LEVER	£69.78	Add to
038	1134-2551-01	GEAR KNOB	£11.59	Add to
039	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
040	1134-7743-01	HAND OPERATED VALVE	£470.41	Add to
040A	1139-2100-01	LEVER BRACKET	£101.23	Add to
041	1134-6364-01	SPACER	£3.83	Add to
042	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
043	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
044	1134-6328-01	SPACER	£19.93	Add to
045	1137-0197-01	HYDRAULIC HOSE	£71.14	Add to
046	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
047	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
050	1137-0216-01	HYDRAULIC HOSE L=2050mm	£105.21	Add to
