Seat

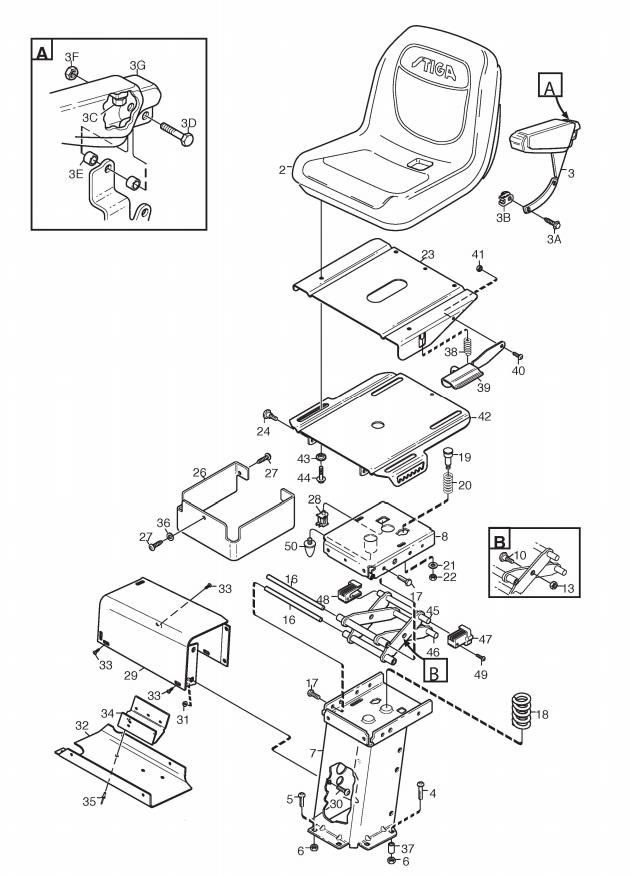

Seat assembly details for Stiga PARK PRO 16 4WD 2012 (13-6271-17) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-7830-01SEAT£206.65 Add to
0031134-5094-01SPACER-ARM RESTS£10.96 Add to
003*1134-7831-01ARM REST ASSEMBLY KIT£174.64 Add to
003A1139-0010-01SCREW-ARM RESTS£4.52 Add to
003B1139-0011-01SPEED NUT PLATE-ARM RESTS£4.28 Add to
003C112156602/0LOW SELF-LOCKING NUT M10 UNI7474 ACC.6S£2.65 Add to
003D9988-3713-16SCREW U6S 3/8UNCX13£5.24 Add to
003E1134-5094-01SPACER-ARM RESTS£10.96 Add to
003F112156602/0LOW SELF-LOCKING NUT M10 UNI7474 ACC.6S£2.65 Add to
003G9997-1045-12SCREW£3.91 Add to
0049897-0880-12SCREW MVBF 8 x 80£3.15 Add to
0059897-0820-16SCREW M8 x 20£3.15 Add to
006112154220/0SELF-LOCK NUT M8£2.90 Add to
0071137-0057-01SEAT BRACKET ASSEMBLY [YELLOW]£85.20 Add to
008387773509/0UPPER PLATE£89.46 Add to
0101134-0240-00SCREW£9.45 Add to
013112154220/0SELF-LOCK NUT M8£2.90 Add to
0161137-0263-01TUBE£9.95 Add to
0179958-0820-16SCREW M6SF M8 x 20£3.15 Add to
0181134-4160-01SEAT SPRING£24.07 Add to
0191134-4153-01PUSH PIN£17.89 Add to
0201134-4159-01SPRING£10.84 Add to
021112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
022112154220/0SELF-LOCK NUT M8£2.90 Add to
0231134-6090-01UPPER SLIDE PLATE£93.24 Add to
0241134-0240-00SCREW£9.45 Add to
0261137-0038-01COVER£39.00 Add to
0279838-9516-12SCREW K50 x 16£3.28 Add to
0281134-3156-01SEAT SWITCH [BLACK]£42.84 Add to
0291134-3990-01ATTACHMENT-SIDE PANEL£152.81 Add to
0309897-0820-16SCREW M8 x 20£3.15 Add to
031112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.90 Add to
0321134-4130-01LOWER COVER YELLOW STIGA£39.06 Add to
0339840-8013-16SCREW 4.8 x 13£2.90 Add to
0341134-4135-01RELAY HOLDER£16.76 Add to
0359632-0522-00POP RIVET£3.28 Add to
0369699-0087-02WASHER 5.3 x 16 x 2£3.28 Add to
0371134-1565-08SPACER£10.19 Add to
0381134-3262-01SPRING£9.07 Add to
0391134-6073-01HANDLE ASSEMBLY£39.06 Add to
0409893-0616-16SCREW M6 x 16£3.28 Add to
041112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0421137-0055-01LOWER SLIDE PLATE£91.98 Add to
0431134-6078-01FLANGE WASHER£6.43 Add to
0449959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0451137-0031-01LINK ASSEMBLY A£63.00 Add to
0461137-0261-01LINK ASSEMBLY B£63.00 Add to
0471137-0033-01BLOCK£4.16 Add to
0481137-0033-02BLOCK£4.16 Add to
0499838-9516-12SCREW K50 x 16£3.28 Add to
0501137-0064-01RUBBER CONE£40.32 Add to
