Pedal Lift

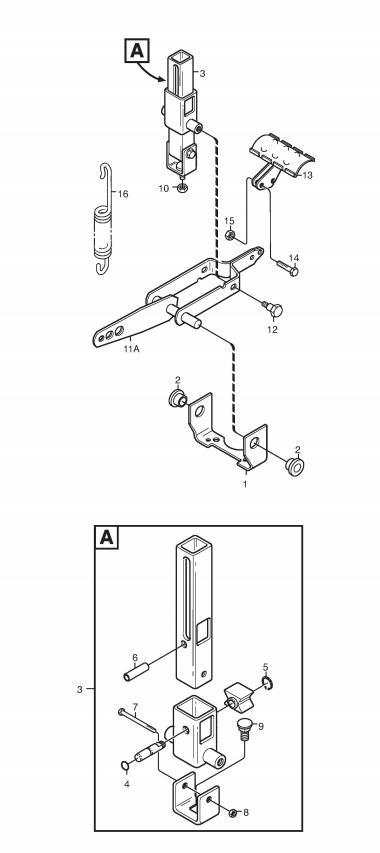

Pedal Lift assembly details for Stiga PARK PRO 16 4WD 2012 (13-6271-17) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4117-01BRACKET£31.50 Add to
0021134-2684-01BUSH£7.56 Add to
0031134-4945-01LIFT CATCH ASSEMBLY£115.92 Add to
0049404-0027-01O RING 4.48 X 1.78£3.78 Add to
0059650-0039-04CIRCLIP 8mm£3.28 Add to
0069595-0276-01LOCATING PIN£4.28 Add to
007112689500/0SCREW M6 x 40£2.90 Add to
008112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0099897-0820-16SCREW M8 x 20£3.15 Add to
010112154220/0SELF-LOCK NUT M8£2.90 Add to
0111137-0109-01LIFT ARM ASSEMBLY£105.84 Add to
0121134-0240-00SCREW£9.45 Add to
0131134-4938-01LIFT PEDAL£24.07 Add to
014112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.90 Add to
015112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0164231-0013-00SPRING£9.20 Add to
