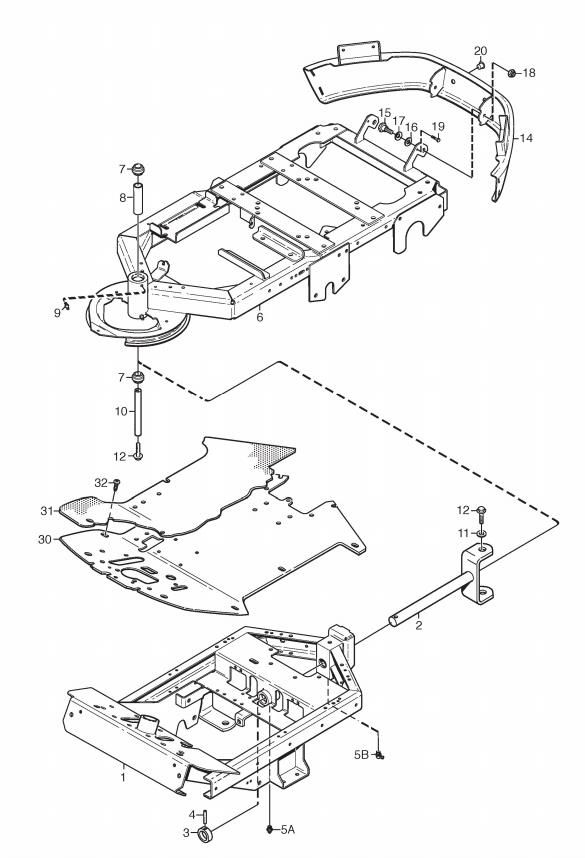

Frame assembly details for Stiga PARK PRO 16 4WD 2012 (13-6271-17) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387800013/0FRONT FRAME ASSEMBLY [4WD]£1,012.89 Add to
0021137-1119-02CLEVIS FORK£158.76 Add to
0031134-0031-00PIVOT SHAFT STOP£24.07 Add to
0049595-0262-00LOCATING PIN£2.90 Add to
005112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
005A9501-0504-01GREASE NIPPLE M6£4.41 Add to
0061134-5953-01REAR FRAME£731.73 Add to
0079547-0001-00BEARING£24.07 Add to
0081134-5705-01SPACER£18.90 Add to
009112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0101134-5988-01CENTRE SHAFT£22.05 Add to
011112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0129959-1025-16SCREW M6SF M10 x 25 TL£3.78 Add to
0141134-5676-01REAR BUMPER£228.06 Add to
0151134-0240-00SCREW£9.45 Add to
0161134-4242-01SPACER WASHER£5.42 Add to
0179665-0002-00BOWL WASHER£3.42 Add to
018112154220/0SELF-LOCK NUT M8£2.90 Add to
019112735654/0SELF-TAPPING SCREW M5 x 16£3.53 Add to
0201134-4100-01PLUG£5.42 Add to
0301134-6586-01FLOOR PLATE£158.76 Add to
0329893-0616-16SCREW M6 x 16£3.28 Add to
