Electrical System

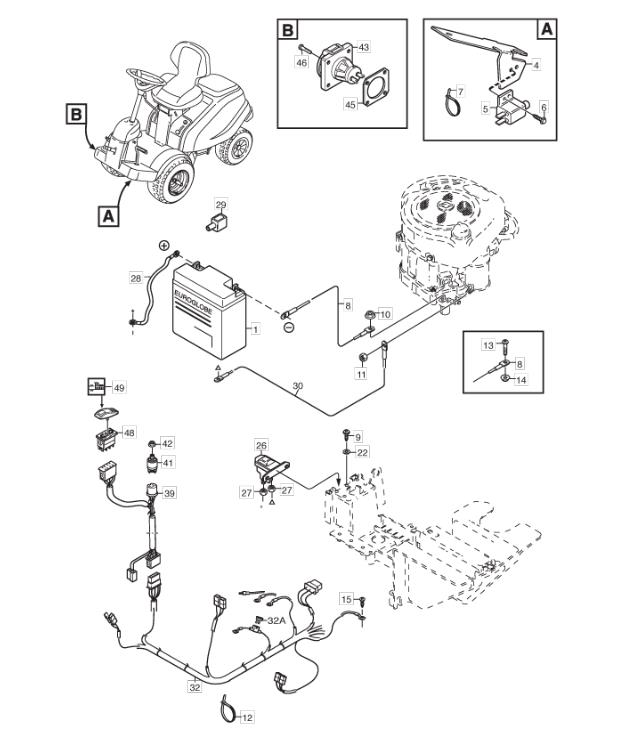

Electrical System assembly details for Stiga VILLA SILENT (13-2728-14) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
004	1134-4610-01	BRACKET	£24.95	Add to
005	1134-3399-02	SWITCH	£45.26	Add to
006	9852-8013-16	SCREW	£2.47	Add to
007	9579-0003-00	CABLE HOLDER	£2.06	Add to
008	1134-2042-02	BATTERY CABLE L=350mm	£27.27	Add to
009	9838-9516-12	SCREW K50 x 16	£2.47	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
012	9579-0003-00	CABLE HOLDER	£2.06	Add to
013	9948-0630-16	SCREW	£4.01	Add to
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
022	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
026	118736112/0	SOLENOID	£39.80	Add to
028	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
029	1134-2310-01	GUARD CAP (+)	£9.28	Add to
032	1134-3496-06	FUSE 20A	£2.06	Add to
032A	1137-0104-01	CABLE HARNESS	£116.11	Add to
039	1134-6442-01	WIRE HARNESS	£58.87	Add to
041	1134-4093-01	IGNITION SWITCH	£67.05	Add to
042	1134-4749-01	NUT	£5.05	Add to
043	1134-7535-01	FEMALE TERMINAL	£7.73	Add to
045	1134-4052-01	SUPPORT WASHER	£9.28	Add to
046	9840-7716-16	SCREW	£2.32	Add to
048	9400-0282-01	SWITCH C/W DIODE	£76.59	Add to
049	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
