Transmission

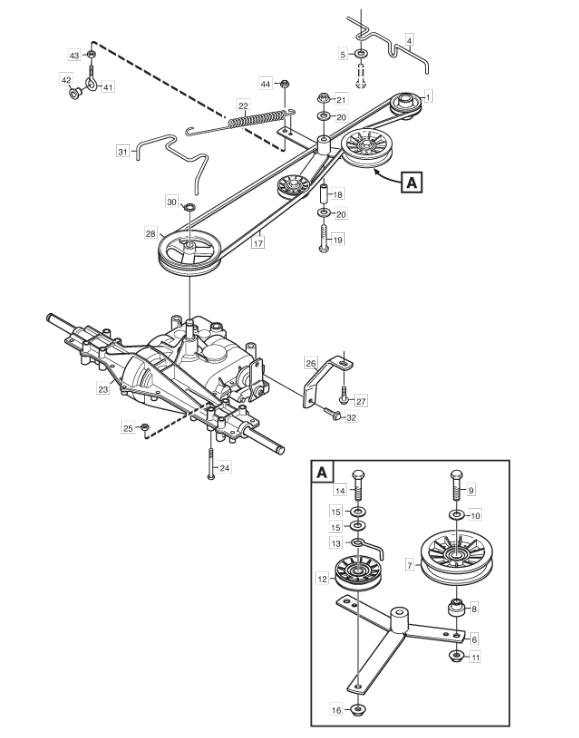

Transmission assembly details for Stiga VILLA 12 ( 13-2717-35) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0205-01ENGINE PULLEY£32.99 Add to
0041134-6637-01BELT GUIDE£13.49 Add to
005112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0061134-4519-01TENSION ARM£43.46 Add to
0071134-3053-01TENSION PULLEY£49.76 Add to
0081134-4614-01SPACER£9.00 Add to
0099997-1040-16SCREW M6S 10 x 40£7.23 Add to
010112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0119739-1031-22NUT M10£2.32 Add to
012387605008/0TENSION PULLEY [GREY]£35.71 Add to
0131134-1795-01BELT STIRRUP£11.87 Add to
0149997-1040-16SCREW M6S 10 x 40£7.23 Add to
015112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0169739-1031-22NUT M10£2.32 Add to
0171134-9164-01TRANSMISSION BELT£53.84 Add to
0181134-1565-08SPACER£9.94 Add to
0189997-0870-16SCREW M6S M8 x 70£2.47 Add to
020112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0221134-5214-01SPRING£13.49 Add to
0249960-0860-12SCREW M8 x 60£2.32 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0261134-4687-01STRUT£17.04 Add to
0271134-4242-01SPACER WASHER£4.78 Add to
0281137-0006-01PULLEY£38.44 Add to
030112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
0311134-4707-01BELT GUIDE£19.36 Add to
032112735595/0SCREW£4.01 Add to
0411134-2138-01EYE BOLT£8.87 Add to
0421134-4779-01PLASTIC BUSH£2.18 Add to
044112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
