Foot Controls

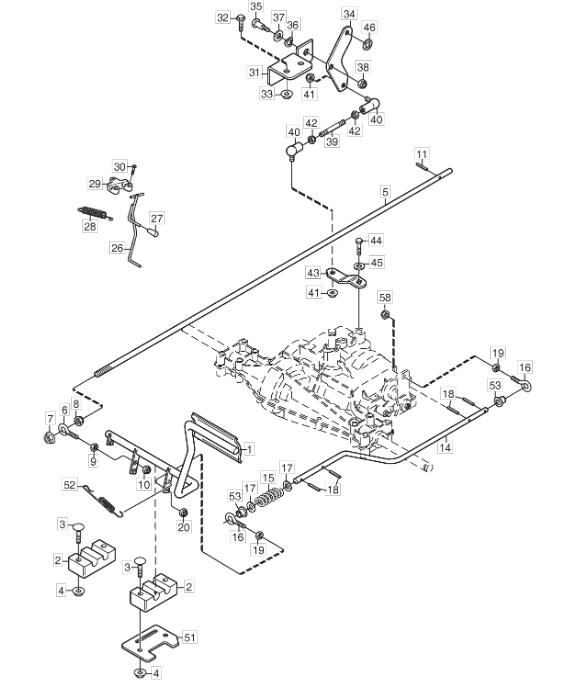

Foot Controls assembly details for Stiga VILLA 12 ( 13-2717-35) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4802-01	PEDAL	£56.15	Add to
002	1134-4624-01	BEARING	£9.41	Add to
003	9897-0640-12	CARRIAGE BOLT M6 x 40	£2.32	Add to
004	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
005	1134-4795-01	CLUTCH ROD	£34.35	Add to
006	1134-2138-01	EYE BOLT	£8.87	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
008	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	9595-0208-00	LOCATING PIN	£2.74	Add to
014	1134-4777-01	BRAKE ROD	£35.71	Add to
015	1134-4617-01	SPRING	£4.52	Add to
016	1134-2138-01	EYE BOLT	£8.87	Add to
017	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
018	9595-0208-00	LOCATING PIN	£2.74	Add to
020	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
026	1134-5353-01	BRAKE ROD	£29.61	Add to
027	1134-2786-01	PLASTIC KNOB	£6.42	Add to
028	1131-1497-01	BRAKE SPRING	£10.50	Add to
029	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
030	9838-9516-12	SCREW K50 x 16	£2.47	Add to
031	1134-4714-01	ANGLE BRACKET	£24.95	Add to
032	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
034	1134-4715-01	ANGLE BRACKET	£22.76	Add to
035	1134-0240-00	SCREW	£9.14	Add to
036	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
037	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
038	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
039	1134-4717-02	THREADED ROD	£13.64	Add to
040	9570-0004-00	ELBOW LINK	£26.18	Add to
041	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
042	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
043	1134-5279-01	SHIFT LEVER (DANA 4360-197) (OBSOLETE)	N/A
043A	1134-6351-01	SHIFT LEVER (DANA 6800-7) (OBSOLETE)	N/A
044	112735520/0	"HEX-HEAD SCREW 1/4"" x 5/8"""	£2.06	Add to
045	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
046	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
051	1134-4793-01	BRACKET	£17.18	Add to
052	4231-0013-00	SPRING	£8.87	Add to
053	1134-4779-01	PLASTIC BUSH	£2.18	Add to
058	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
