Transmission

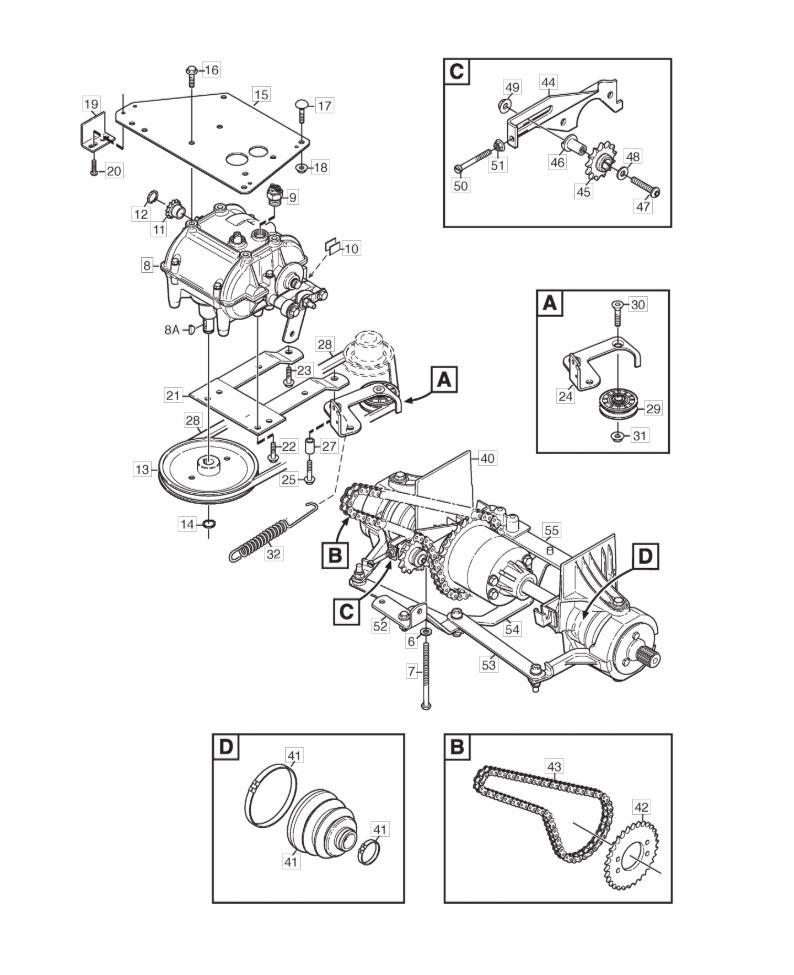

Transmission assembly details for Stiga PRIMO SE (13-2411-33) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
006	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
007	9997-0814-02	SCREW M6S M8 x 140	£4.52	Add to
008	1134-6717-01	GEARBOX	£497.66	Add to
008A	112139430/0	KEY 3/16" x 3/4"	£2.06	Add to
009	1134-7381-01	SWITCH-NEUTRAL	£42.53	Add to
010	F000-7109-00	FRICTION PAD (OBSOLETE) (OBSOLETE)	N/A
011	1134-6652-01	SPROCKET	£57.52	Add to
012	9651-0016-04	CIRCLIP	£2.06	Add to
013	1134-6494-01	BELT PULLEY	£75.23	Add to
014	112608950/0	CIRCLIP D=0,584TO D=0,569	£2.06	Add to
015	1134-6481-01	GEARBOX PLATE	£23.03	Add to
016	1134-4242-01	SPACER WASHER	£4.78	Add to
017	9897-0850-12	SCREW	£2.18	Add to
019	1134-6564-01	NEUTRIAL STOP BRKT	£6.58	Add to
020	9893-0616-16	SCREW M6 x 16	£2.47	Add to
021	1134-6487-01	CONSOLE	£30.54	Add to
022	1134-4242-01	SPACER WASHER	£4.78	Add to
023	9958-0820-16	SCREW M6SF M8 x 20	£2.32	Add to
024	1134-6505-01	CLUTCH LEVER	£17.90	Add to
025	1134-7829-01	SCREW c/w LOCK	£2.06	Add to
027	1134-1565-06	SPACER	£11.32	Add to
028	1134-9134-01	TRANSMISSION BELT	£27.27	Add to
029	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
030	9924-1035-16	SCREW MF6S M10 x 35	£6.27	Add to
031	9739-1031-22	NUT M10	£2.32	Add to
032	1134-6692-01	SPRING	£5.21	Add to
040	1134-7760-01	REAR AXLE ASSY	£729.32	Add to
041	1134-9142-01	DRIVE SHAFT RUBBER GUARD	£54.79	Add to
042	1134-6667-01	CHAIN WHEEL	£47.00	Add to
043	1134-7771-01	CHAIN W CHAIN LOCK	£89.43	Add to
044	1134-7843-01	CHAIN TENSIONER (ADJUSTABLE)	£41.16	Add to
045	1134-3820-01	SPROCKET	£17.45	Add to
046	1134-7827-01	SPACER	£9.14	Add to
047	9930-1045-16	SCREW	£2.06	Add to
048	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
049	9739-1031-22	NUT M10	£2.32	Add to
050	9865-0860-16	SCREW	£4.01	Add to
052	1134-6660-01	WIRE BRACKET	£7.01	Add to
053	1134-3247-06	TIE ROD	£24.26	Add to
054	1134-7826-01	STEERING STAY	£14.73	Add to
055	1134-7759-01	CROSS BAR	£13.21	Add to
