Electric System 1

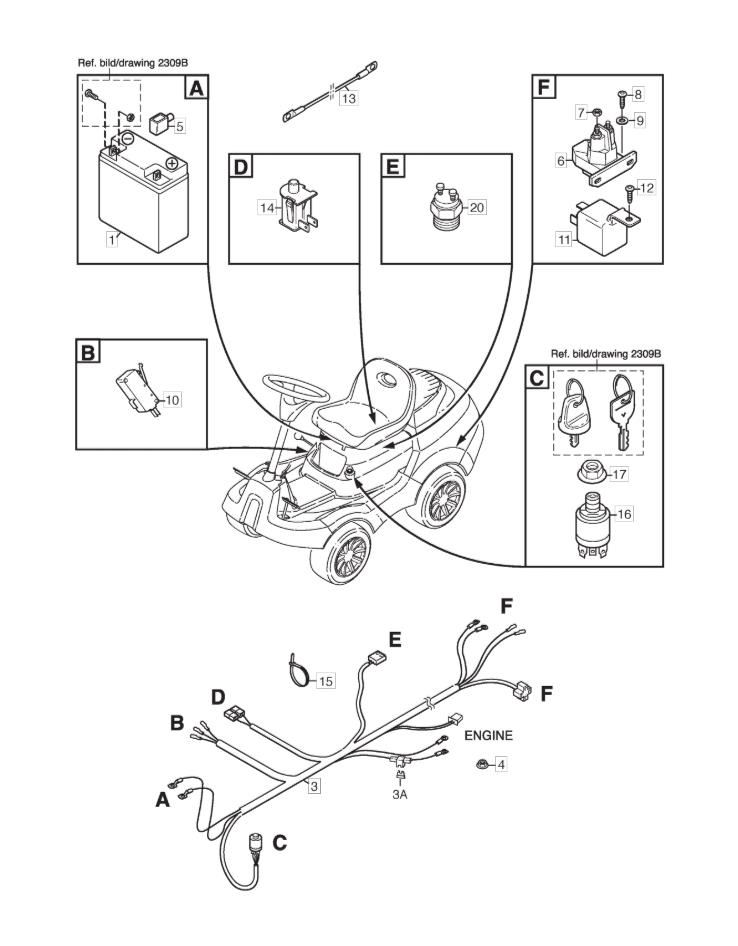

Electric System 1 assembly details for Stiga PRIMO SE (13-2411-33) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	1134-6498-01	WIRE HARNESS (PRIMO)	£150.18	Add to
003A	1134-3496-06	FUSE 20A	£2.06	Add to
004	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
005	1134-2310-01	GUARD CAP (+)	£9.28	Add to
006	118736112/0	SOLENOID	£39.80	Add to
008	9838-8822-19	SCREW K60 x 22	£2.06	Add to
009	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
010	9400-0360-01	MICRO SWITCH	£8.60	Add to
011	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
012	9838-8822-19	SCREW K60 x 22	£2.06	Add to
013	1134-4702-01	CABLE (+)	£26.18	Add to
014	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
015	9579-0003-00	CABLE HOLDER	£2.06	Add to
016	1134-4093-01	IGNITION SWITCH	£67.05	Add to
017	1134-4749-01	NUT	£5.05	Add to
020	1134-7381-01	SWITCH-NEUTRAL	£42.53	Add to
