Body Work

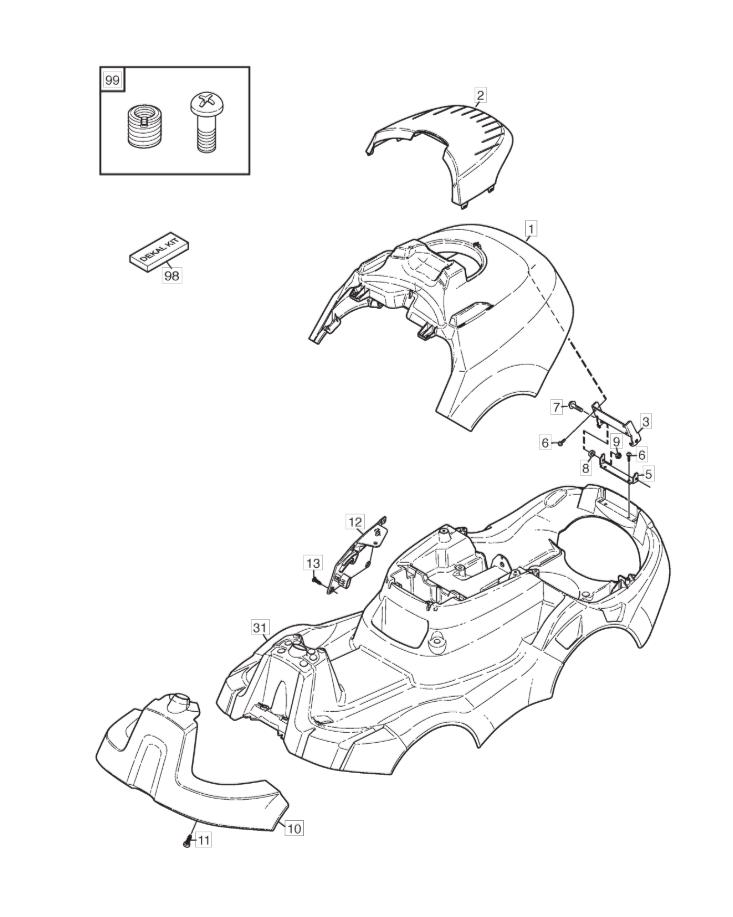

Body Work assembly details for Stiga PRIMO SE (13-2411-33) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6711-01ENGINE HOOD [YELLOW]£151.35 Add to
001A1134-6711-03ENGINE HOOD-BLACK£133.56 Add to
0021134-6712-01ENGINE COVER£49.14 Add to
0031134-6583-01BRACKET-LH£6.23 Add to
0051134-6584-01BRACKET£6.23 Add to
0069838-8822-19SCREW K60 x 22£2.90 Add to
007112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0081134-5114-01SPACER£9.83 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0101134-6708-01FRONT COVER-YELLOW£44.22 Add to
010A1134-6708-03FRONT COVER-BLACK£36.69 Add to
0119838-8822-19SCREW K60 x 22£2.90 Add to
0121134-6581-04PTO-COVER (BLACK)£47.88 Add to
0139838-8822-19SCREW K60 x 22£2.90 Add to
0991134-7498-01REPAIR KIT-THREAD INSERT£28.32 Add to
