Wheels

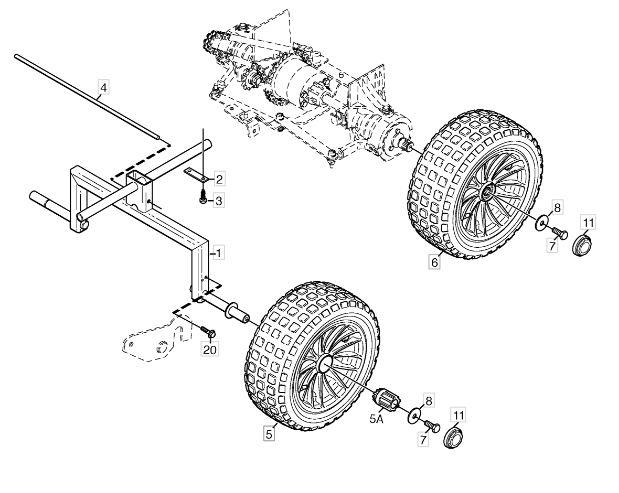

Wheels assembly details for Stiga PRIMO (13-2411) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7787-01FRONT AXLE ASSY£72.98 Add to
0021134-6527-01CLAMP£6.23 Add to
0039838-8822-19SCREW K60 x 22£2.90 Add to
0041134-6569-01WHEEL AXLE SPRING£9.83 Add to
0051134-7244-01FRONT WHEEL ASSEMBLY£94.50 Add to
005A1134-9140-01WHEEL BUSH KIT (2 Pieces)£11.72 Add to
005B125950000/0PNEUMATIC VALVE£6.30 Add to
0061134-7243-01REAR WHEEL ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
006A125950000/0PNEUMATIC VALVE£6.30 Add to
0079997-1020-16SCREW M6S M10 x 20£2.90 Add to
0081134-5406-01WASHER M10 10.5 x 35 x 5£4.91 Add to
0111134-6510-01HUB CAP£7.56 Add to
0201134-4242-01SPACER WASHER£5.42 Add to
