Transmission

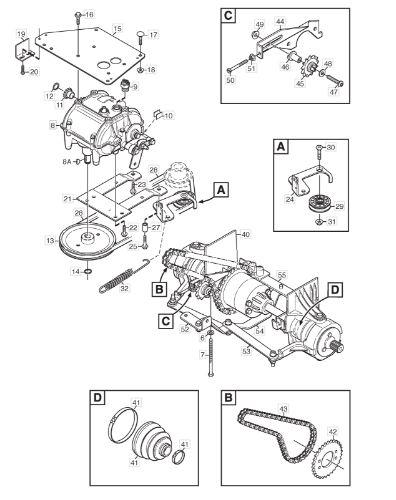

Transmission assembly details for Stiga PRIMO (13-2411) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0069699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
0079997-0814-02SCREW M6S M8 x 140£5.17 Add to
0081134-6717-01GEARBOX£461.16 Add to
008A112139430/0KEY 3/16" x 3/4"£2.90 Add to
0091134-7381-01SWITCH-NEUTRAL£40.32 Add to
010F000-7109-00FRICTION PAD (OBSOLETE) (OBSOLETE)N/A
0111134-6652-01SPROCKET£54.18 Add to
0129651-0016-04CIRCLIP£2.90 Add to
0131134-6494-01BELT PULLEY£70.56 Add to
014112608950/0CIRCLIP D=0,584TO D=0,569£2.90 Add to
0151134-6481-01GEARBOX PLATE£22.29 Add to
0161134-4242-01SPACER WASHER£5.42 Add to
0179897-0850-12SCREW£3.02 Add to
0191134-6564-01NEUTRIAL STOP BRKT£7.09 Add to
0209893-0616-16SCREW M6 x 16£3.28 Add to
0211134-6487-01CONSOLE£29.24 Add to
0221134-4242-01SPACER WASHER£5.42 Add to
0239958-0820-16SCREW M6SF M8 x 20£3.15 Add to
0241134-6505-01CLUTCH LEVER£17.55 Add to
0251134-7829-01SCREW c/w LOCK£2.90 Add to
0271134-1565-06SPACER£11.47 Add to
0281134-9134-01TRANSMISSION BELT£26.21 Add to
029387605008/0TENSION PULLEY [GREY]£34.02 Add to
0309924-1035-16SCREW MF6S M10 x 35£6.80 Add to
0319739-1031-22NUT M10£3.15 Add to
0321134-6692-01SPRING£5.82 Add to
0401134-7760-01REAR AXLE ASSY£675.36 Add to
0411134-9142-01DRIVE SHAFT RUBBER GUARD£51.66 Add to
0421134-6667-01CHAIN WHEEL£44.46 Add to
0431134-7771-01CHAIN W CHAIN LOCK£83.69 Add to
0441134-7843-01CHAIN TENSIONER (ADJUSTABLE)£39.06 Add to
0451134-3820-01SPROCKET£17.14 Add to
0461134-7827-01SPACER£9.45 Add to
0479930-1045-16SCREW£2.90 Add to
0489699-0030-02WASHER (10 X 26 X 2)£2.98 Add to
0499739-1031-22NUT M10£3.15 Add to
0509865-0860-16SCREW£4.71 Add to
0521134-6660-01WIRE BRACKET£7.49 Add to
0531134-3247-06TIE ROD£23.43 Add to
0541134-7826-01STEERING STAY£14.62 Add to
0551134-7759-01CROSS BAR£13.21 Add to
