Body Work

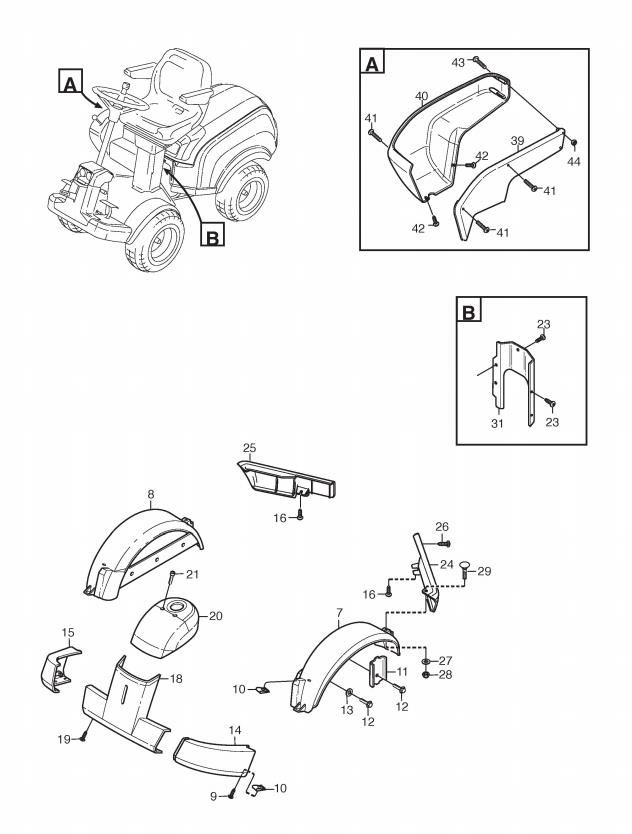

Body Work assembly details for Stiga PARK SILENT 14 2011 (13-6144-75) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
007	1134-5308-01	MUDGUARD LH [GREY]	£94.31	Add to
008	1134-5308-02	MUDGUARD RH [GREY]	£112.23	Add to
009	9893-0616-16	SCREW M6 x 16	£2.47	Add to
010	1134-4176-01	CLIP	£5.19	Add to
011	1137-0088-01	SUPPORT PLATE	£2.74	Add to
012	1134-4242-01	SPACER WASHER	£4.78	Add to
013	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
014	1134-5306-01	FRONT BUMPER LH [GREY]	£24.95	Add to
015	337502505/0	FRONT BUMPER RH [GREY]	£56.15	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
018	1134-5305-01	FRONT BUMPER [YELLOW]	£84.77	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
020	1134-5304-01	FRONT COVER [YELLOW]	£67.05	Add to
021	9946-0525-16	SCREW M5 x 25	£2.47	Add to
023	9893-0616-16	SCREW M6 x 16	£2.47	Add to
024	1134-3970-05	LEFT MOULDING [GREY]	£58.87	Add to
025	1134-3970-02	RIGHT MOULDING [GREY]	£58.87	Add to
026	9893-0616-16	SCREW M6 x 16	£2.47	Add to
027	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	9897-0616-16	SCREW	£2.47	Add to
031	1134-6461-01	REAR PLATE	£34.35	Add to
039	1134-4360-01	INNER COVER	£67.05	Add to
040	1134-3979-01	OUTER COVER	£102.48	Add to
041	9946-0525-16	SCREW M5 x 25	£2.47	Add to
042	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
043	9950-0570-12	SCREW M5 x 70	£2.74	Add to
044	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
