Wheels

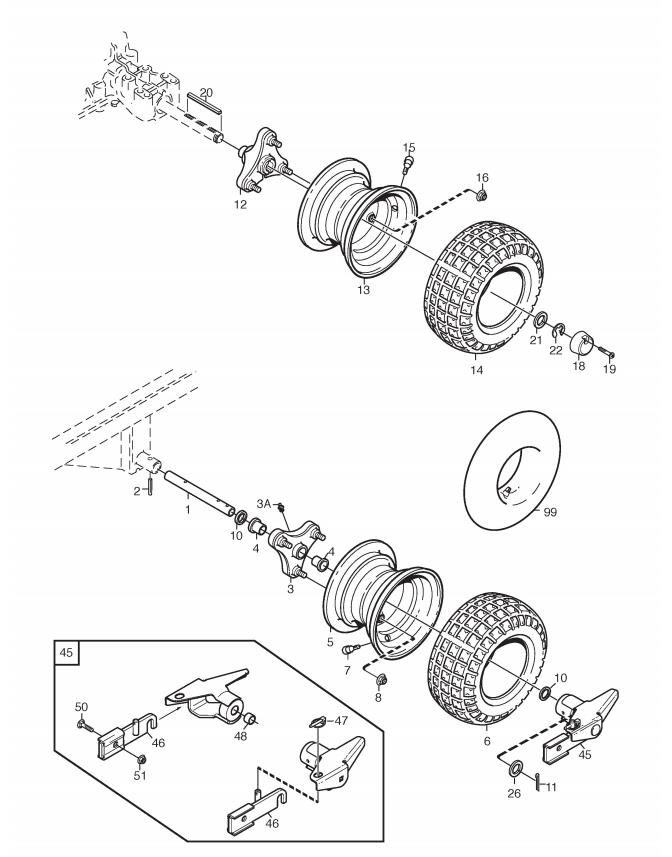

Wheels assembly details for Stiga PARK ROYAL 4WD 2011 (13-6312-11) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-0075-01FRONT AXLE£42.84 Add to
002112645710/0ROLL PIN D=6 x 32£3.28 Add to
0031134-4844-05WHEEL HUB ASSEMBLY£56.70 Add to
004137038009/0WHEEL BUSH£6.63 Add to
0051134-4558-01WHEEL RIM£100.80 Add to
005A1134-5255-01RIM£100.80 Add to
005A1134-5255-01RIM£100.80 Add to
0069545-0116-00TYRE 16 x 7.50-8£80.64 Add to
006A9545-0126-01TYRE 16 x 6.00-8£68.04 Add to
006A9545-0126-01TYRE 16 x 6.00-8£68.04 Add to
007125950000/0PNEUMATIC VALVE£6.30 Add to
0089731-1031-22LOCK NUT M6MF M10£3.28 Add to
0101134-0341-01WASHER£7.56 Add to
0119599-0080-02COTTER PIN£3.28 Add to
0121134-4844-02WHEEL HUB ASSEMBLY£54.18 Add to
0131134-4558-01WHEEL RIM£100.80 Add to
013A1134-5255-01RIM£100.80 Add to
0149545-0116-00TYRE 16 x 7.50-8£80.64 Add to
014A9545-0126-01TYRE 16 x 6.00-8£68.04 Add to
015125950000/0PNEUMATIC VALVE£6.30 Add to
0169731-1031-22LOCK NUT M6MF M10£3.28 Add to
0181134-4796-01HUB CAP£6.05 Add to
0199947-0540-19SCREW£2.90 Add to
0201134-2471-01KEY£9.70 Add to
0219699-0042-02WASHER 20 x 36 x 3£3.28 Add to
0229653-0001-04CIRCLIP 3/4"£3.42 Add to
0269699-0042-02WASHER 20 x 36 x 3£3.28 Add to
0459699-0042-02WASHER 20 x 36 x 3£3.28 Add to
0461134-7465-01ATTACHMENT HOOK PLATES [LH & RH]£50.40 Add to
0471137-0077-01LOCKING PIN£4.52 Add to
0489548-0026-01BEARING 20E7x26-20£31.50 Add to
0509898-1035-16SCREW 10 x 35£3.91 Add to
0519739-1031-22NUT M10£3.15 Add to
0999545-0203-00INNER TUBE 16 x 6.50£25.20 Add to
