Hydraulic Lift

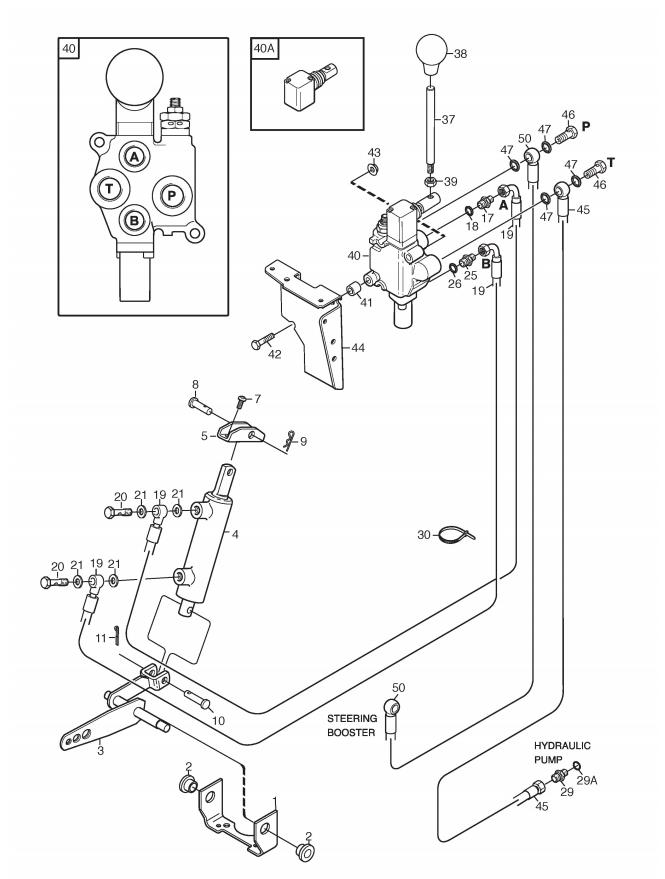

Hydraulic Lift assembly details for Stiga PARK PRO SVAN 4WD 2011 (13-6272-26) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-4117-01BRACKET£31.50 Add to
0021134-2684-01BUSH£7.56 Add to
0041137-0071-01HYDRAULIC CYLINDER£341.46 Add to
0051134-4815-01CYLINDER BRACKET£55.44 Add to
0079893-0616-16SCREW M6 x 16£3.28 Add to
0081134-4816-01PIN£13.61 Add to
0099598-0002-02SPRING PIN 2.5mm L=47mm£2.90 Add to
0101134-4817-01PIN£12.98 Add to
0119599-0054-02SPLIT PIN£3.15 Add to
0171134-4824-01ADAPTER£12.10 Add to
0181134-4948-01SEAL WASHER 1/4"£3.40 Add to
0191137-0193-01HYDRAULIC HOSE 90° 3/16"£83.69 Add to
0201134-4826-01BANJO BOLT£15.62 Add to
0211134-4947-01COPPER WASHER 10 x 14 x 1.5£6.30 Add to
0251134-4824-01ADAPTER£12.10 Add to
0261134-4948-01SEAL WASHER 1/4"£3.40 Add to
029387520119/0LOWER STEERING COLUMN£68.10 Add to
029A9404-0028-01O RING 11.89 x 1.98£5.42 Add to
0309579-0003-00CABLE HOLDER£2.90 Add to
0371134-6345-01LEVER£65.52 Add to
0381134-2551-01GEAR KNOB£11.72 Add to
0401134-7743-01HAND OPERATED VALVE£435.96 Add to
040A1139-2100-01LEVER BRACKET£88.78 Add to
0411134-6364-01SPACER£4.54 Add to
042112689515/0HEX-HEAD SCREW M6 x 45£2.90 Add to
043112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0441134-6328-01SPACER£19.43 Add to
0451137-0197-01HYDRAULIC HOSE£66.78 Add to
0461134-6323-01BANJO BOLT 3/8"£10.71 Add to
0471134-4948-02SEAL WASHER 3/8"£2.90 Add to
0501137-0216-01HYDRAULIC HOSE L=2050mm£98.28 Add to
