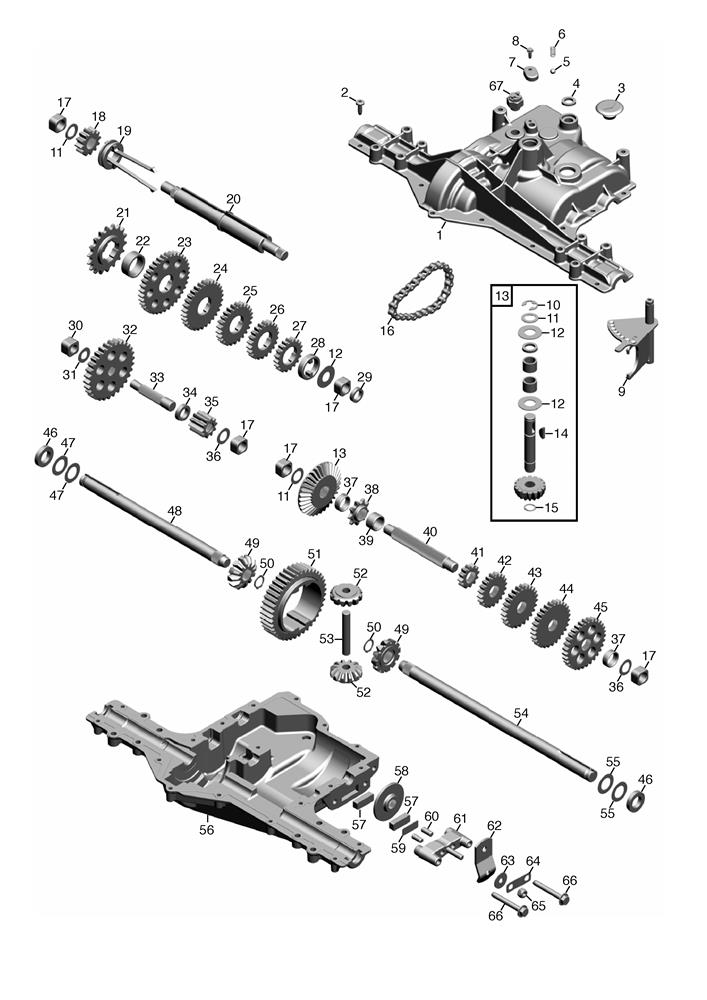

Transmission 1 assembly details for Stiga Villa 12 (13-2717-14) 2010 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
000 | 1134-6349-01 | TRANSAXLE (DANA 6800-8) | £1,409.14 | Add to |
002 | F000-1919-00 | SCREW,TAP | £5.45 | Add to |
003 | F004-1356-00 | RUBBER PLUG | £2.47 | Add to |
004 | F000-7089-00 | SEAL RING (OBSOLETE) | N/A | |
008 | F084-0052-00 | SCREW | £5.92 | Add to |
012 | F000-3876-00 | WASHER | £9.14 | Add to |
016 | F000-3625-00 | CHAIN,24 PITCHES | £101.13 | Add to |
019 | F000-6692-00 | SHIFT COLLAR | £183.07 | Add to |
021 | F000-3830-00 | SPROCKET,18T | £68.94 | Add to |
022 | F000-7094-00 | SPACER | £8.84 | Add to |
024 | F000-3867-00 | GEAR,SPUR,30T | £159.45 | Add to |
025 | F000-3783-00 | GEAR,SPUR,25T | £109.10 | Add to |
027 | F000-5202-00 | GEAR,SPUR, 19T | £88.77 | Add to |
028 | F000-5027-00 | SPACER | £20.31 | Add to |
030 | F000-7092-00 | BUSHING | £28.82 | Add to |
031 | F000-3890-00 | PLAIN WASHER | £2.30 | Add to |
032 | F000-7079-00 | SPUR GEAR (OBSOLETE) | N/A | |
035 | F000-5180-00 | SPUR GEAR | £24.74 | Add to |
037 | F000-3714-00 | SPACER | £12.21 | Add to |
039 | F000-7084-00 | DRIVE SHAFT | £54.79 | Add to |
040 | F000-7084-00 | DRIVE SHAFT | £54.79 | Add to |
041 | F000-5364-00 | GEAR, SPUR 12T | £15.91 | Add to |
042 | F000-3866-00 | GEAR,SPUR,20T | £61.73 | Add to |
043 | F000-3719-00 | GEAR SPUR 25T | £90.57 | Add to |
045 | F000-3683-00 | GEAR SPUR 31T | £130.18 | Add to |
047 | F000-3184-00 | WASHER,PLAIN | £9.62 | Add to |
050 | F000-5270-00 | RETAINING RING | £2.32 | Add to |
053 | F000-3919-00 | SHAFT,CROSS | £38.33 | Add to |
054 | F000-7165-20 | WHEEL AXLE RH (OBSOLETE) | N/A | |
054 | F000-7166-20 | WHEEL AXLE RH (OBSOLETE) | N/A | |
059 | F000-3758-00 | SPACER (OBSOLETE) (OBSOLETE) | N/A | |
062 | F000-7029-00 | ACTUATING LEVER | £19.07 | Add to |
063 | F000-3760-00 | WASHER,PLAIN | £4.52 | Add to |
066 | F000-5562-00 | SCREW | £6.69 | Add to |
067 | 119410610/0 | NEUTRAL SWITCH [MECHANICAL] | £54.79 | Add to |
