Seat

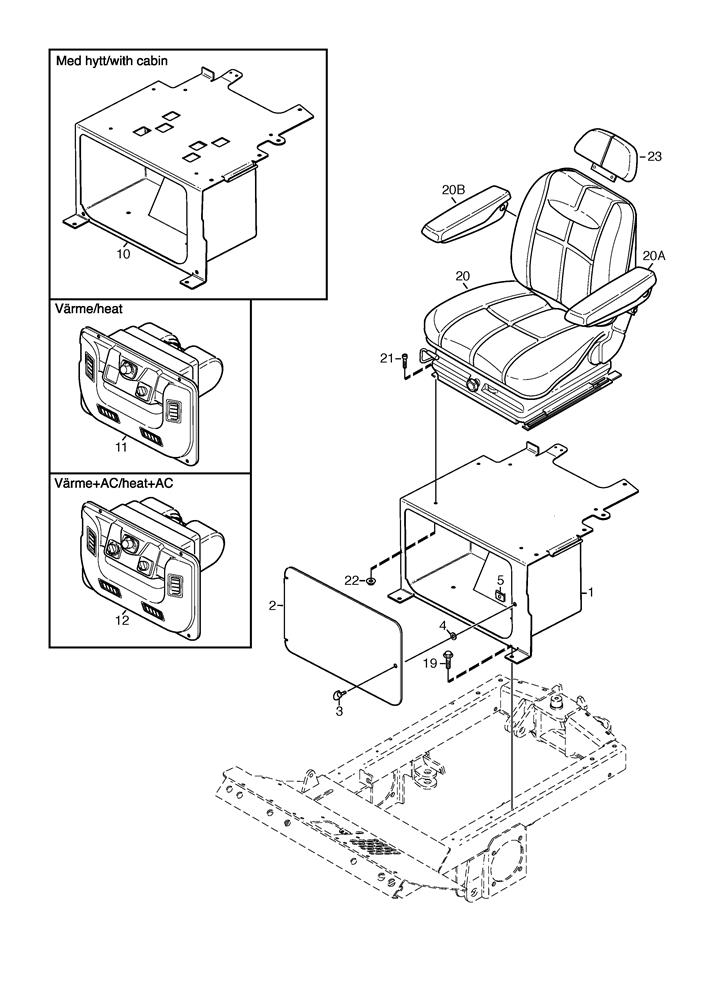

Seat assembly details for Stiga Titan 32 H W Cabin AC (13-7442-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0031134-7456-01FASTENER£17.86 Add to
0041137-0454-01WASHER£2.06 Add to
0051134-7458-01CLIP ON NUT£11.46 Add to
0199945-0816-16SCREW M8 X 16£2.54 Add to
0201134-7215-01SEAT£1,590.14 Add to
0201134-7532-01ARM REST L/H£170.61 Add to
0201134-7532-02ARM REST R/H£170.61 Add to
0219930-0820-16SCREW£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0231134-7258-01NECK REST£109.88 Add to
