Foot Controls

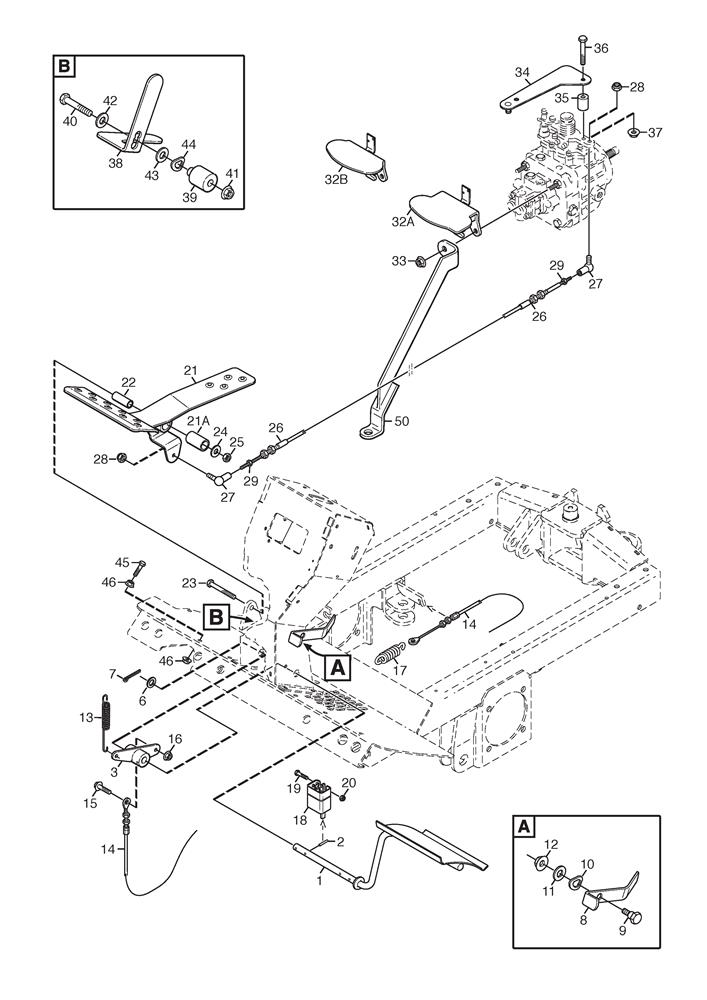

Foot Controls assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	9595-0210-00	LOCATING PIN	£8.32	Add to
006	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
007	9599-0080-02	COTTER PIN	£2.47	Add to
009	1134-0240-01	SCREW	£9.82	Add to
010	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
011	1134-4242-01	SPACER WASHER	£4.78	Add to
012	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
013	1134-7401-01	SPRING	£6.55	Add to
014	1134-7281-01	BRAKE CABLE	£34.35	Add to
015	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
016	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
017	1134-7321-01	EXTENSION SPRING	£5.76	Add to
018	1134-3399-01	SWITCH	£45.26	Add to
019	9997-0520-16	SCREW M6S M5 x 20	£2.32	Add to
020	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
021	1134-7216-02	DRIVE PEDAL	£190.93	Add to
021	9548-0027-01	BEARING	£9.68	Add to
022	1134-7217-01	SPACER	£9.54	Add to
023	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
024	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
025	1134-4775-01	LOCK NUT	£2.47	Add to
026	1134-7054-01	CONTROL CABLE	£131.92	Add to
027	9570-0004-00	ELBOW LINK	£26.18	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
032	1134-7035-02	SPEED CONTROL PLATE ASSY	£96.51	Add to
032	1135-3911-01	SPEED CONTROL PLATE ASS	£104.37	Add to
033	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
034	1134-7031-01	LEVER	£73.87	Add to
035	1134-7034-01	SPACER	£10.73	Add to
036	112691700/0	SCREW M8 x 55	£1.91	Add to
037	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
038	1134-7593-01	DRIVE PEDAL STOP	£28.68	Add to
039	1134-7594-01	SPACER	£12.37	Add to
040	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
041	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
042	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
043	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
044	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
045	9997-0835-16	SCREW M6S 8 x 35	£2.32	Add to
046	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
