Electrical System 1

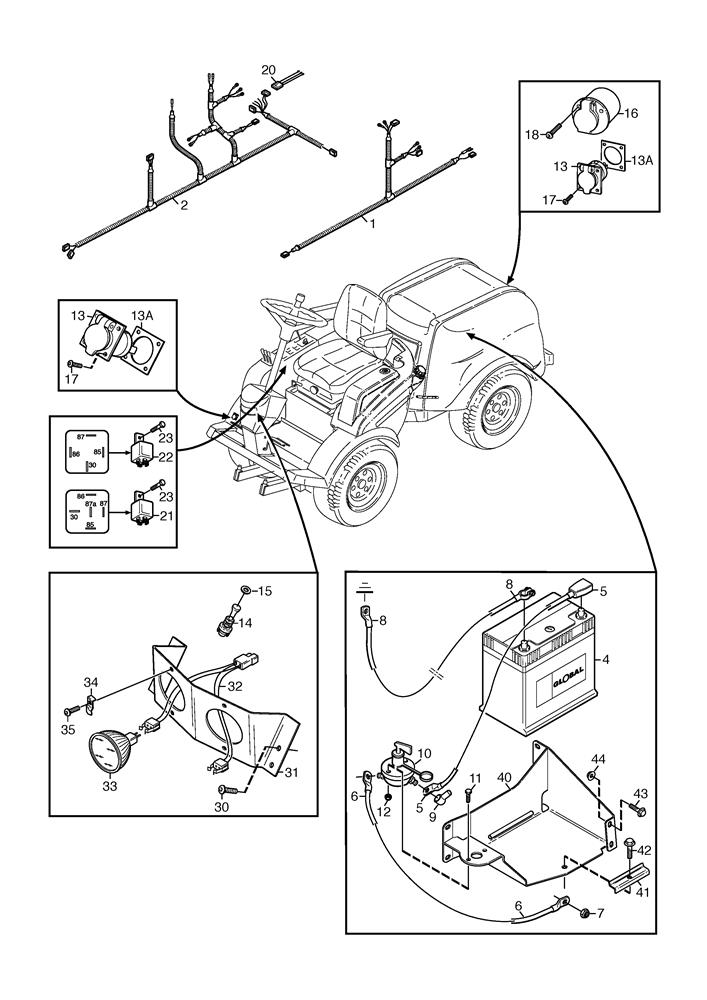

Electrical System 1 assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011135-2810-01WIRE HARNESS-LH (REAR)£279.64 Add to
0021135-2811-01WIRE HARNESS-RH (REAR)£637.94 Add to
003112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0041134-7203-01BATTERY (OBSOLETE)N/A
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0109400-0316-01MAIN SWITCH£76.59 Add to
0119997-0520-16SCREW M6S M5 x 20£2.32 Add to
012112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0131134-6318-01SEAL£2.54 Add to
013387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
0149400-0296-01SWITCH£34.35 Add to
0159699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
016084-036-01PLUG CONTACT£72.73 Add to
0179840-7716-16SCREW£2.32 Add to
0189946-0525-16SCREW M5 x 25£2.47 Add to
0211134-2871-03STARTER RELAY [5 SPADE]£45.26 Add to
0221134-2871-01DECK RELAY [4 SPADE]£45.26 Add to
0239997-0520-16SCREW M6S M5 x 20£2.32 Add to
0309893-0616-16SCREW M6 x 16£2.47 Add to
0311134-7487-01LAMP BRACKET£67.54 Add to
0321134-7505-01WIRE HARNESS£129.74 Add to
0339400-0326-01HALOGEN LAMP£16.10 Add to
0359852-8013-16SCREW£2.47 Add to
0411134-6943-01BATTERY CLAMP£18.95 Add to
0429959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
0439959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
044112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0459945-0816-16SCREW M8 X 16£2.54 Add to
