Cabin 3

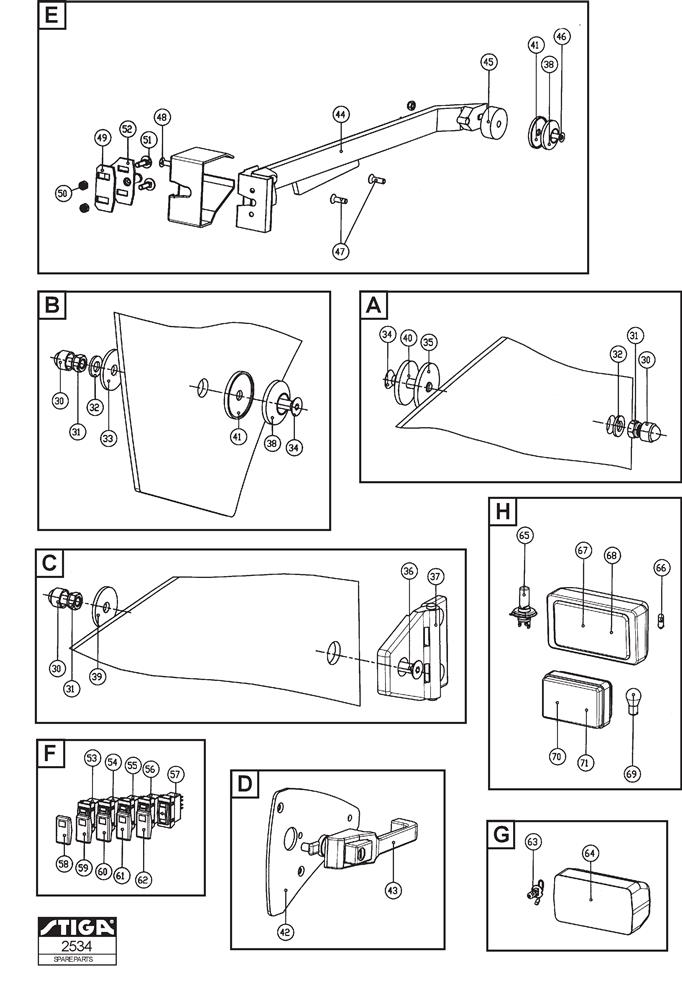

Cabin 3 assembly details for Stiga Titan 32 H W Cabin (13-7441-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
030	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
031	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
032	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
033	1319-1159-01	RUBBER GASKET	£3.15	Add to
034	9924-0840-19	SCREW	£3.28	Add to
035	1319-1160-01	RUBBER GASKET	£2.74	Add to
036	9924-0840-19	SCREW	£3.28	Add to
037	1319-1133-01	HINGE	£61.60	Add to
038	1319-1158-01	PLATE	£9.07	Add to
039	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
040	1319-1158-01	PLATE	£9.07	Add to
041	1319-1160-01	RUBBER GASKET	£2.74	Add to
042	1319-1161-01	DOOR PLATE GASKET	£14.05	Add to
043	1319-1143-01	DOOR HANDLE W KEYS	£231.93	Add to
044	1319-1148-01	DOOR LOCK L/H	£415.91	Add to
045	1319-1127-01	SPACER	£7.63	Add to
046	1319-1155-01	SCREW	£3.55	Add to
047	1319-1154-01	SCREW	£3.69	Add to
048	1319-1153-01	SCREW	£3.55	Add to
049	1319-1147-01	BOLT STRIKER	£45.26	Add to
050	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
051	1319-1156-01	SCREW	£3.69	Add to
052	1319-1146-01	SPACER	£3.72	Add to
053	1319-1111-01	SWITCH-WIND SCREEN WASHER	£87.50	Add to
054	1319-1109-01	SWITCH-WORK LAMPS	£95.67	Add to
055	1319-1109-01	SWITCH-WORK LAMPS	£95.67	Add to
056	1319-1109-01	SWITCH-WORK LAMPS	£95.67	Add to
057	1319-1110-01	SWITCH-WIND SCREEN WIPER	£95.72	Add to
059	1319-1108-01	COVER-BEACON	£48.50	Add to
060	1319-1104-01	COVER-WORK LIGHT	£61.60	Add to
062	1319-1106-01	COVER-WIPER	£49.60	Add to
064	1319-1121-01	WORK LAMP	£156.99	Add to
070	1319-1100-01	DIRECTION LIGHT	£150.18	Add to
071	1319-1100-01	DIRECTION LIGHT	£150.18	Add to
