PTO-Pump 1

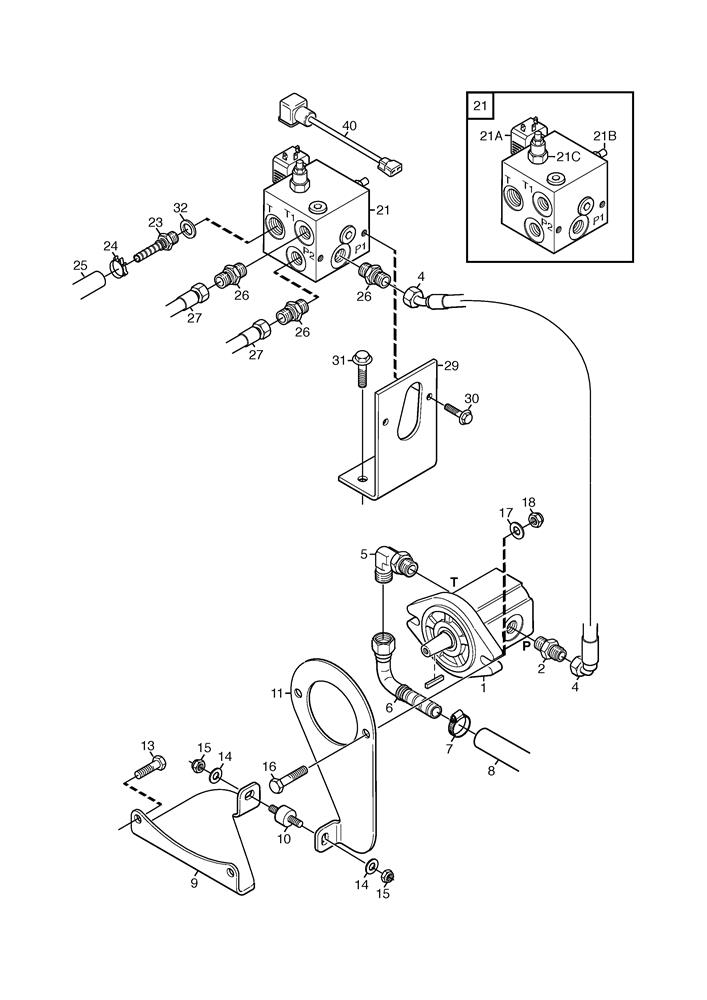

PTO-Pump 1 assembly details for Stiga Titan 32 H (13-7440-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-2517-01	HYDRAULIC PUMP-PTO	£722.51	Add to
002	1134-7315-01	HYDRAULIC CONNECTOR	£16.22	Add to
005	1134-7186-01	HYDRAULIC COUPLING	£93.36	Add to
006	1134-7186-01	HYDRAULIC COUPLING	£93.36	Add to
007	9578-0032-01	TUBE CLAMP	£7.64	Add to
008	9578-0032-01	TUBE CLAMP	£7.64	Add to
009	1135-2578-01	BRACKET YANMAR-82	£72.73	Add to
009	1135-2781-01	BRACKET	£272.82	Add to
010	9550-0008-03	VIBRATION DAMPER	£20.72	Add to
011	1135-2579-01	LEVER-PTO PUMP	£101.13	Add to
013	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
014	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
015	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
016	9997-1035-16	SCREW M6S M10 x 35	£3.28	Add to
017	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
018	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
021	1134-7127-02	HYDRAULIC VALVE	£1,301.65	Add to
021	1139-2088-02	ELECTRIC VALVE C/W MAGNET	£422.72	Add to
021	1139-2089-01	RELIEF VALVE (10 BAR)	£586.24	Add to
021	1139-2090-01	RELIEF VALVE (220 BAR)	£565.79	Add to
024	9578-0031-01	HOSE CLAMP	£5.58	Add to
030	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
031	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
040	1134-7225-01	WIRE HARNESS [PTO]	£83.40	Add to
